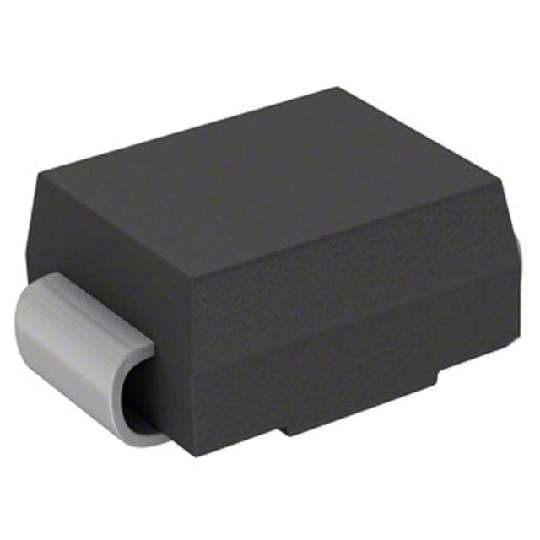

LITTELFUSE K2500SRP 触发二极管, DIAC / SIDAC, 240 V, 280 V, 10 µA, 1 A, DO-214, 2 引脚
- DIAC,SIDAC 240 ~ 280V DO-214
得捷:
SIDAC 240-280V 1A DO214
立创商城:
Vs=280V
贸泽:
高压触发二极管 250V
e络盟:
LITTELFUSE K2500SRP 触发二极管, DIAC / SIDAC, 240 V, 280 V, 10 µA, 1 A, DO-214, 2 引脚
艾睿:
This K2500SRP SCR thyristor from Littelfuse can be used to safeguard against voltage spikes while offering a much faster operation. This device has a surge current rating of 20. This SCR thrysitor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its repetitive peak forward blocking voltage is 200Min V, while its repetitive peak reverse voltage is 200Min V.
Chip1Stop:
Thyristor SIDAC 200V 20A 2-Pin DO-214AA T/R
Verical:
Thyristor Surge Protection Devices 200V 20A 2-Pin DO-214AA T/R
DeviceMart:
SIDAC 240-280V 1A DO214
额定电流 1 A
针脚数 2
正向电压 200 V
保持电流 150 mA
保持电流Max 150 mA
正向电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214-2
封装 DO-214-2
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Lighting, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
K2500SRP Littelfuse 力特 | 当前型号 | 当前型号 |
K2500S 力特 | 类似代替 | K2500SRP和K2500S的区别 |
