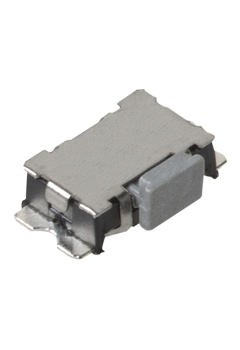

KSS341GLFS

KSS 系列 次微型 单刀单掷 2.5 N 鸥翼型 表面贴装 轻触开关

Features/Benefits

• Low profile of 1.6 mm

• Excellent tactile feel

• High shear force

• Range of actuation forces

• Large flat top

• Redundant contacts option

• IP 40 sealed

• RoHS compliant and compatible

Typical Applications

• Cellular phone

• PA, pagers

• Industrial electronics

• Health diagnostic electronics

立创商城:
KSS341GLFS

贸泽:
触觉开关 SWITCH TACTILE

艾睿:
Turn on or off your circuit simply by applying pressure to this sub-miniature KSS341GLFS tactile switch from C&a;K Components. This device has a maximum current rating of 0.05. It has a SPST configuration. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The KSS341GLFS tactile switch has a gull wing termination style. This product is 7 mm long, 2.4 mm tall and 4.4 mm deep. The maximum DC voltage rating is 32 VDC. This rectangular button actuator is 0.8 mm long.

Verical:
Switch Tactile N.O. SPST Rectangular Button Gull Wing 0.05A 32VDC 1VA 100000Cycles 4N SMD T/R

儒卓力:
**TACT SMT RA 4N AG SPST large **

MASTER:
Subminiature SMT Side Actuated

Online Components:
Subminiature SMT Side Actuated

Electro Sonic:
Subminiature SMT Side Actuated
