触觉开关 Switch Tact Spst Vert Mark Ii

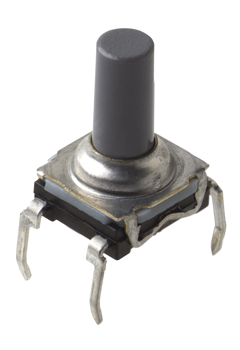

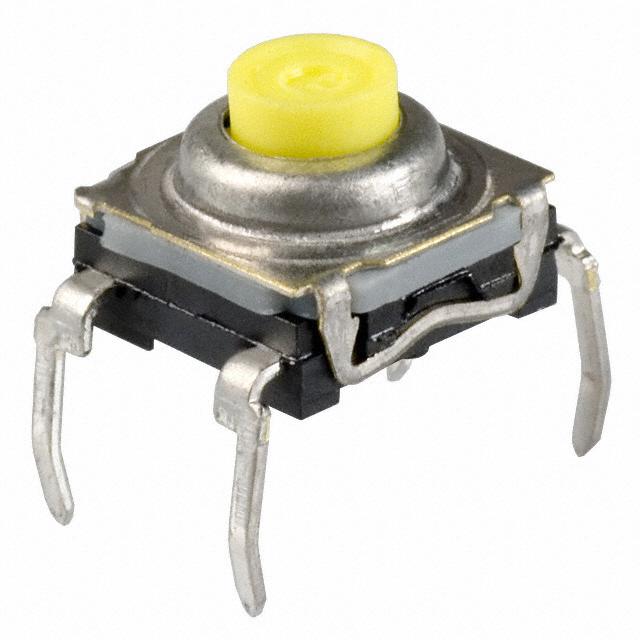

Want to use a force of pressure to turn on your circuit? Check out this high performance tactile switch from C&K Components. It has a SPST configuration. This device has a maximum current rating of 0.05. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The KSA0M512LFT tactile switch has a PC pin termination style. This product is 6.2 mm long, 4.7 mm tall and 9 mm deep. This round button actuator is 1 mm long. The maximum DC voltage rating is 32 VDC.
触点电镀 Silver
额定电压DC 32 V
接触器类型 Standard
方向 Vertical
触点类型 SPST-NO
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
安装方式 Through Hole
长度 6.20 mm
宽度 6.20 mm
高度 4.7 mm
触点材质 Silver
工作温度 -40℃ ~ 85℃
产品生命周期 100000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KSA0M512LFT C&K Components | 当前型号 | 当前型号 |
KSL0M511LFT C&K Components | 完全替代 | KSA0M512LFT和KSL0M511LFT的区别 |
KSL0M512LFT C&K Components | 完全替代 | KSA0M512LFT和KSL0M512LFT的区别 |
KSA0M512 C&K Components | 完全替代 | KSA0M512LFT和KSA0M512的区别 |
