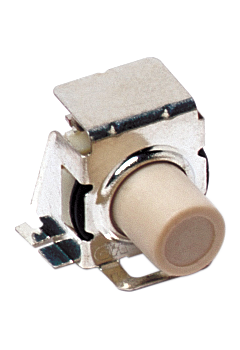

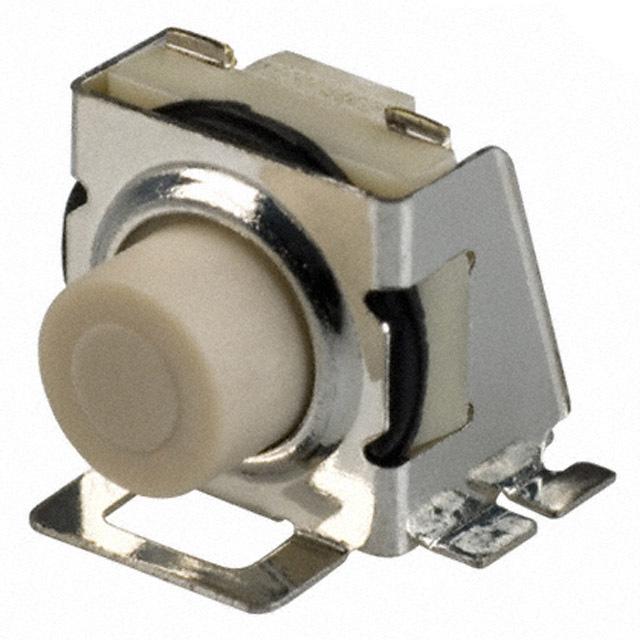

KT11 系列 单刀单掷 直角 侧面 操作杆 3 N 密封 表面贴装 轻触开关
This tactile switch from C&K Components is perfect for turning on your circuit by applying pressure. It has a SPST configuration. This tactile switch has a minimum operating temperature of -40 °C and a maximum of 90 °C. The KT11P2SA2M34LFS tactile switch has a gull wing termination style. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC. This round button actuator is 2.36 mm long.
额定电压DC 32 V
额定电压AC 32 V
绝缘电阻 10 GΩ
排数 1
额定功率 1 VA
额定功率Max 1 W
工作温度Max 90 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
额定电压AC Max 32 V
接触电阻Max <50 mΩ
安装方式 Through Hole
封装 SMD
长度 6.3 mm
宽度 8.24 mm
高度 7.11 mm
封装 SMD
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KT11P2SA2M34LFS C&K Components | 当前型号 | 当前型号 |
KT11P3SA1M34LFS C&K Components | 完全替代 | KT11P2SA2M34LFS和KT11P3SA1M34LFS的区别 |
KT11P2SA3M34LFS C&K Components | 完全替代 | KT11P2SA2M34LFS和KT11P2SA3M34LFS的区别 |
KT11P4SA2M34LFS C&K Components | 完全替代 | KT11P2SA2M34LFS和KT11P4SA2M34LFS的区别 |
