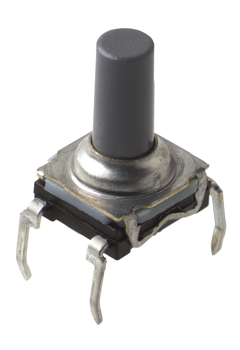

C & K COMPONENTS KSL0V311LFT 轻触开关, 不发光, 1.3 N, 32 V, 50 mA, 焊接, KSL系列
The KSL series sealed Tactile Switch with SPST-NO contact arrangement and cambered terminals to ensure self retention.
欧时:
Switch sealed Tactile through hole 1.3 N
得捷:
SWITCH TACTILE SPST-NO 0.05A 32V
贸泽:
Tactile Switches Switch Tact Long Rt Ang Sealed
e络盟:
C & K COMPONENTS KSL0V311LFT 轻触开关, 不发光, 1.3 N, 32 V, 50 mA, 焊接, KSL系列
艾睿:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 1000000Cycles 1.8N Bracket Mount/Through Hole Automotive Bulk
富昌:
KSL Series Sealed SPST 1.3 N Through Hole Tactile Switch
Chip1Stop:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 1000000Cycles 1.8N Thru-Hole Bulk
Verical:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 1000000Cycles 1.8N Bracket Mount/Through Hole Automotive Bulk
MASTER:
Sealed Tact Switch
Online Components:
Sealed Tact Switch
Electro Sonic:
Sealed Tact Switch
触点电镀 Silver
额定电压DC 32 V
接触器类型 Standard
额定电流 50 mA
排数 1
额定功率 1 VA
方向 Right Angle
触点类型 SPST-NO
额定电流Max 0.05 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
安装方式 Through Hole
长度 9.5 mm
宽度 11.1 mm
高度 8 mm
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KSL0V311LFT C&K Components | 当前型号 | 当前型号 |
KSA0V311LFT C&K Components | 完全替代 | KSL0V311LFT和KSA0V311LFT的区别 |
KSL0V310 C&K Components | 完全替代 | KSL0V311LFT和KSL0V310的区别 |
KSA0V331LFT C&K Components | 类似代替 | KSL0V311LFT和KSA0V331LFT的区别 |
