轻触开关 Tactile Switch

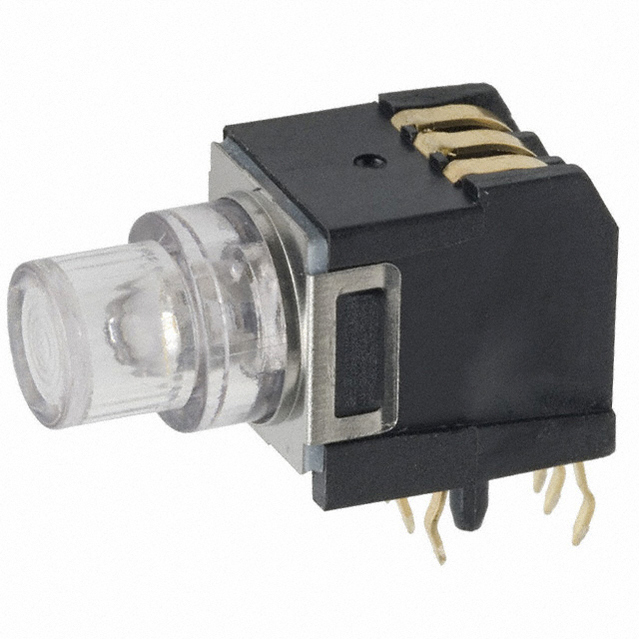

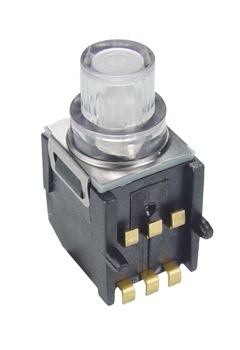

Illuminated Tact Switch
得捷:
SWITCH TACTILE SPDT 0.1A 32V
立创商城:
轻触开关 Tactile Switch
艾睿:
Switch Tactile N.O./N.C. SPDT Round Button PC Pins 0.1A 30VDC 1VA 25000Cycles 4N Bracket Mount/Through Hole Automotive Tray
安富利:
Switch Tactile N.O./N.C. SPDT Round Button PC Pins 0.1A 30VDC 1VA 25000Cycle 4N Thru-Hole Tray
Chip1Stop:
Switch Tactile N.O./N.C. SPDT Round Button PC Pins 0.1A 30VDC 1VA 25000Cycles 4N Thru-Hole Tray
Verical:
Switch Tactile N.O./N.C. SPDT Round Button PC Pins 0.1A 32VDC 1VA 25000Cycles 4N Bracket Mount/Through Hole Automotive Bulk
MASTER:
Illuminated Tact Switch
Online Components:
Illuminated Tact Switch
Electro Sonic:
Illuminated Tact Switch
触点电镀 Gold
额定电压DC 32 V
方向 Right Angle
触点类型 SPDT
额定电流Max 0.1 A
额定功率Max 1 VA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 30 V
接触电阻Max <150 mΩ
安装方式 Through Hole
封装 散装
长度 8.00 mm
宽度 8.00 mm
高度 9.1 mm
封装 散装
工作温度 -40℃ ~ 85℃
产品生命周期 25000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
K5V1YG43T C&K Components | 当前型号 | 当前型号 |
K5V1YE43T C&K Components | 功能相似 | K5V1YG43T和K5V1YE43T的区别 |
