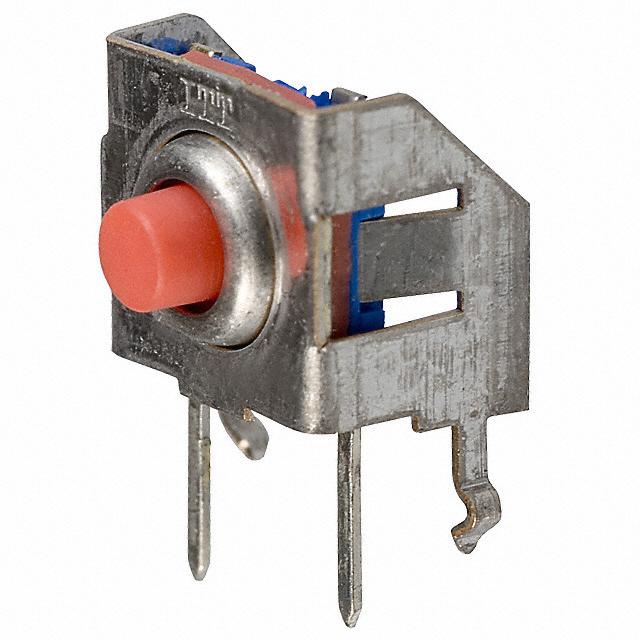

Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
艾睿:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
MASTER:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Online Components:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
Electro Sonic:
Switch Tactile N.O. SPST Round Button PC Pins 0.05A 32VDC 1VA 100000Cycles 3N Thru-Hole Automotive Box
触点电镀 Silver
接触器类型 Button
方向 Right Angle
触点类型 SPST-NO
额定电流Max 0.05A @32VDC
工作温度Max 90 ℃
工作温度Min -40 ℃
额定电压DC Max 32 V
接触电阻Max <50 mΩ
安装方式 Through Hole
长度 7.40 mm
宽度 7.40 mm
高度 8 mm
触点材质 Silver
工作温度 -40℃ ~ 90℃
产品生命周期 Obsolete
包装方式 Box
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
