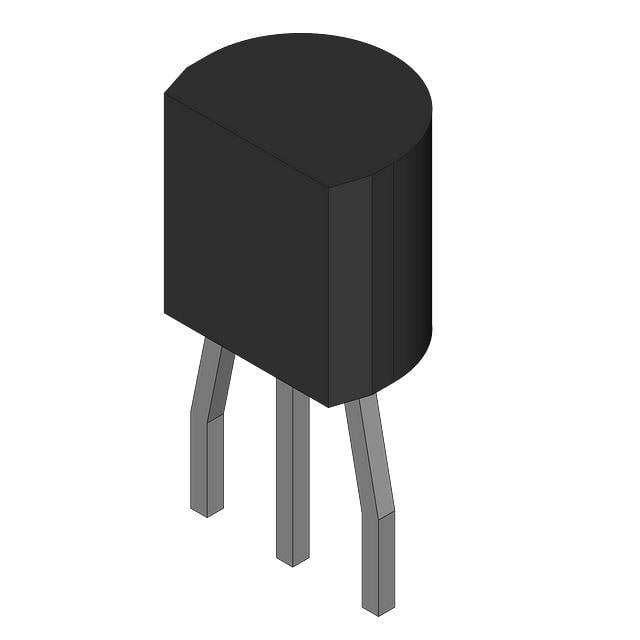

KA75330系列 3.3 V 30 mA 开/关 电源电压检测器 - TO-92-3
Description
The KA75250/KA75270/KA75290/KA75310/KA75330/KA75360/KA75390/KA75420/KA75450 prevents the error of system from supply voltage below normal voltage level at the time the power on and instantaneous power off in systems.
Features
• Detecting Against Error Operations At The Power On/off.
• Resetting Function For The Low Voltage Microprocessor.
• Checking Low Battery
得捷:
POWER SUPPLY SUPPORT CIRCUIT, FI
艾睿:
Voltage Detector 2.5V to 4.5V 3-Pin TO-92R Ammo
富昌:
KA75330系列 3.3 V 30 mA 开/关 电源电压检测器 - TO-92-3
Verical:
Voltage Detector 2.5V to 4.5V 3-Pin TO-92R T/R
Win Source:
IC VOLTAGE DETECTOR 3.3V TO-92
电源电压DC 15.0V max
通道数 1
耗散功率 0.2 W
阈值电压 3.3 V
复位电压Min 3.15 V
复位电压Max 3.45 V
工作温度Max 85 ℃
工作温度Min -25 ℃
耗散功率Max 200 mW
电源电压Max 15 V
电源电压Min 0.3 V
安装方式 Through Hole
引脚数 3
封装 TO-92-3
宽度 3.86 mm
高度 4.58 mm
封装 TO-92-3
工作温度 -25℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KA75330ZTA Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
KA75330ZBU 飞兆/仙童 | 完全替代 | KA75330ZTA和KA75330ZBU的区别 |
