三端0.1A正电压稳压器 3-terminal 0.1A positive voltage regulator
Description
The KA78LXXA/KA78L05AA series of fixed voltage monolithic integrated circuit voltage regulators are suitable for application that required supply current up to 100mA.
Features
• Maximum Output Current of 100mA
• Output Voltage of 5V, 6V, 8V, 9V,10V, 12V, 15V, 18V and 24V
• Thermal Overload Protection
• Short Circuit Current Limiting
• Output Voltage Offered in ±5% Tolerance
得捷:
IC REG LIN FIXED POS STD REG 15V
立创商城:
正 Vin=35V Vout=15V 100mA 60dB@120Hz
艾睿:
Standard Regulator Pos 15V 0.1A 3-Pin TO-92R Ammo
安富利:
LDO Regulator Pos 15V 0.1A 3-Pin TO-92R Ammo
富昌:
KA78L15A 3 Terminal 0.1 A Positive Voltage Reg- TO92
Chip1Stop:
LDO Regulator Pos 15V 0.1A 3-Pin TO-92R Ammo
Verical:
Standard Regulator Pos 15V 0.1A 3-Pin TO-92R Ammo
输出接口数 1
输入电压DC 35.0V max
输出电压 15 V
输出电流 100 mA
耗散功率 750 W
静态电流 2.1 mA
跌落电压 1.7V @40mA
输入电压Max 35 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
耗散功率Max 750 mW
精度 ±5 %
输入电压 ≤35 V
安装方式 Through Hole
引脚数 3

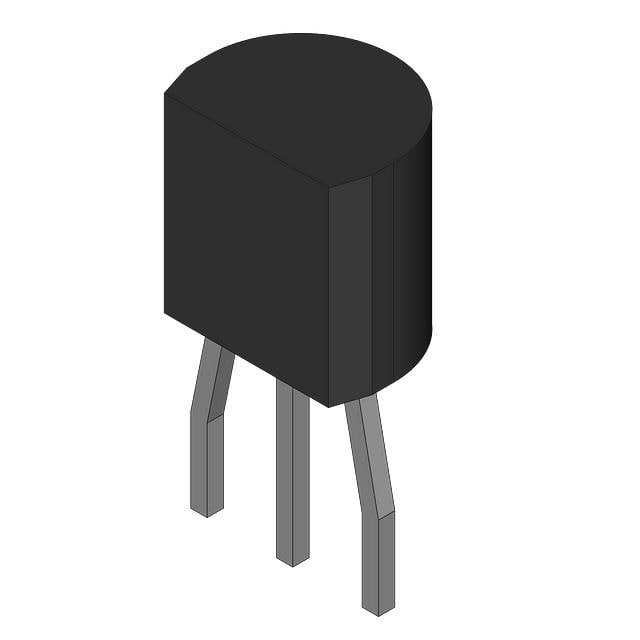

封装 TO-226-3
高度 4.58 mm
封装 TO-226-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Box TB
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
KA78L15AZTA Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MC78L15ACP 飞兆/仙童 | 完全替代 | KA78L15AZTA和MC78L15ACP的区别 |
MC78L15ACPXA 飞兆/仙童 | 完全替代 | KA78L15AZTA和MC78L15ACPXA的区别 |
LM78L15ACZ/NOPB 德州仪器 | 类似代替 | KA78L15AZTA和LM78L15ACZ/NOPB的区别 |
