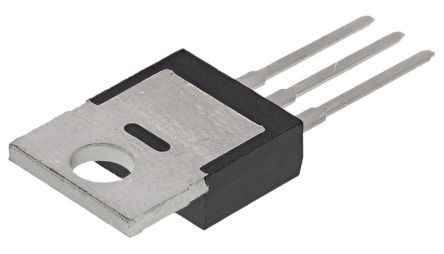

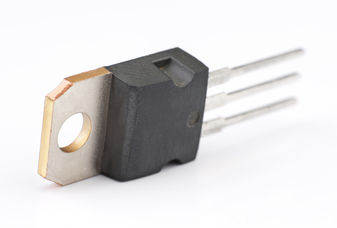

KA7806ETU

Fairchild Semiconductor高可靠性电压调节器 固定输出电压 低动态输出阻抗 快速开启响应 广泛的工作温度范围 保护，带热关闭 ### 线性电压稳压器，Fairchild Semiconductor

Description

The KA78XXE / KA78XXAE series of three-terminal positive regulators is available in the TO-220 / D-PAK pack age with several fixed-output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut-down, and safe operating area. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed-voltage regulators, these devices can be used with external components for adjustable voltages and currents.

Features

• Output Current up to 1 A

• Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24 V

• Thermal Overload Protection

• Short-Circuit Protection

• Output Transistor Safe Operating Area Protection
