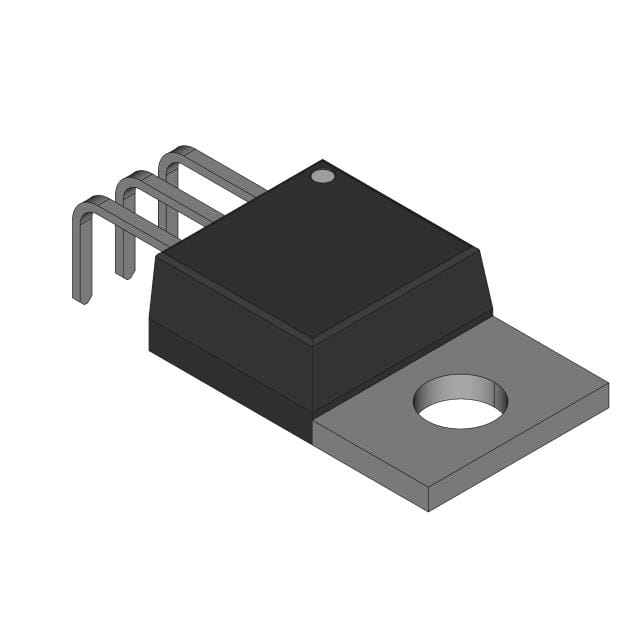

FAIRCHILD SEMICONDUCTOR KA7809ETU 线性稳压器, 固定, 7809, 11.5V至24V输入, 9V和1A输出, TO-220AB-3
The is a 3-terminal Positive Regulator with several fixed-output voltages, making it useful in a wide range of applications. This type employs internal current limiting, thermal shut-down and safe operating area. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed-voltage regulator, this device can be used with external components for adjustable voltages and currents.
- .
- Short-circuit protection
- .
- ±4% Output voltage tolerance
输出接口数 1
输入电压DC 35.0V max
输出电压 9 V
输出电流 1 A
针脚数 3
静态电流 8 mA
跌落电压 2V @1A
输入电压Max 24 V
输入电压Min 11.5 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±4 %
输入电压 ≤35 V
安装方式 Through Hole
引脚数 3
封装 TO-220-3
长度 10 mm
宽度 4.5 mm
高度 15.95 mm
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KA7809ETU Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
LM7805CT 飞兆/仙童 | 类似代替 | KA7809ETU和LM7805CT的区别 |
LM7809CT 飞兆/仙童 | 类似代替 | KA7809ETU和LM7809CT的区别 |
LM7808CT 飞兆/仙童 | 类似代替 | KA7809ETU和LM7808CT的区别 |
