3 - 1号航站楼负电压稳压器 3-Terminal 1 A Negative Voltage Regulator
Description
The KA79XX/KA79XXA series of three-terminal negative regulators are available in TO-220 package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shutdown and safe operating area protection, making it essentially indestructible.
Features
• Output Current in Excess of 1A
• Output Voltages of -5, -6, -8, -9, -12, -15, -18 , -24V
• Internal Thermal Overload Protection
• Short Circuit Protection
• Output Transistor Safe Operating Area Compensation
输出接口数 1
输入电压DC -35.0 V max
输出电压 5 V
输出电流 1 A
静态电流 3 mA
跌落电压 2V @1A
输入电压Max 25 V
输入电压Min 7 V
输出电流Max 2.2 A
工作温度Max 125 ℃
工作温度Min 0 ℃
精度 ±4 %
安装方式 Through Hole

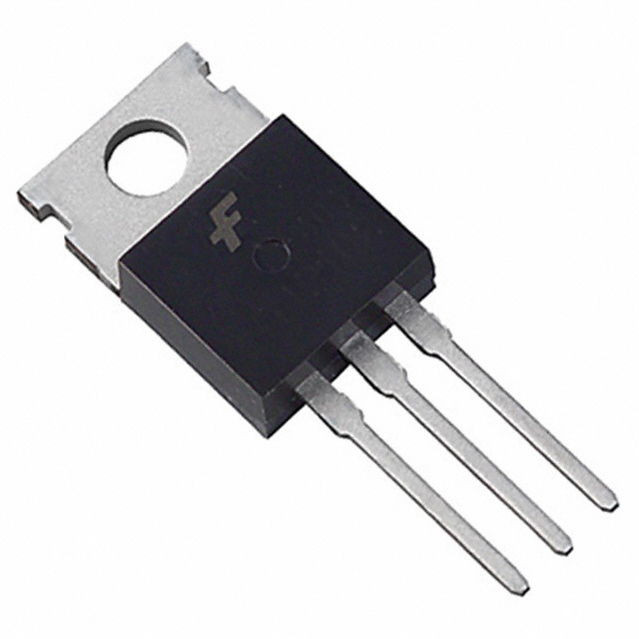

封装 TO-220-3
长度 10.1 mm
宽度 4.7 mm
高度 9.4 mm
封装 TO-220-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
KA7905TU Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
KA7915TU 飞兆/仙童 | 完全替代 | KA7905TU和KA7915TU的区别 |
MC7905CTG 安森美 | 功能相似 | KA7905TU和MC7905CTG的区别 |
LM7912CT 飞兆/仙童 | 功能相似 | KA7905TU和LM7912CT的区别 |
