KA7552A

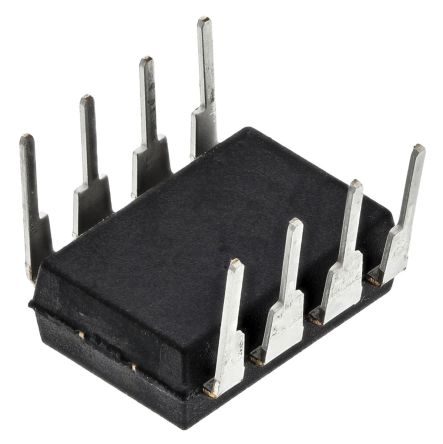

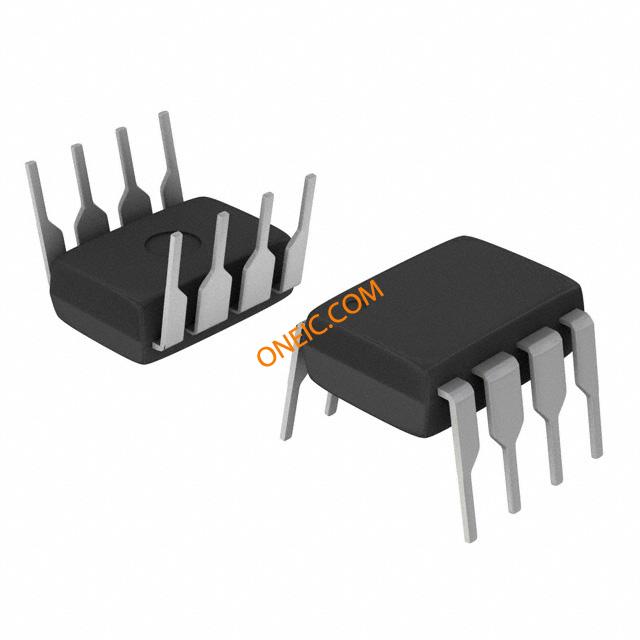

FAIRCHILD SEMICONDUCTOR  KA7552A  控制器, PWM, 30V-10V电源, 135 kHz, 16.5V/100mA输出, DIP-8

The is a PWM Controller programmable frequency up to 600kHz. The KA7552A is switching power control IC for wide operating frequency range. The internal circuits include pulse by pulse current limiting, protection, on/off control by external trigger, low standby current, soft start and high current totem pole output for driving a POWER MOSFET. When duty is maximum, the input threshold voltage of pin2 and pin8 are not same in KA7552A.

.

Built-in drive circuits for direct connection POWER MOSFET lO = ±1.5A

.

Wide operating frequency range 5 to 600kHz

.

Pulse by pulse over-current limiting

.

Overload protection

.

On/off control by external trigger

.

Internal UVLO

.

Low standby current typical 90uA

.

Soft start circuit
