KA278R33CTU

LDO（低压降）线性电压调节器，Fairchild Semiconductor### LDO（低压降）线性电压调节器 - Fairchild Semiconductor低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。

Description

The KA278RXXC is a low-dropout voltage regulator suitable for various electronic equipments. It provides constant voltage power source with TO-220-4 lead full mold package. The dropout voltage of KA278RXXC is below 0.5V in full rated current2A. This regulator has various functions such as a peak current protection, a thermal shutdown, an overvoltage protection .

Features

KA278RXXC-series 33/05/51/09/12

• 2A/3.3V, 5V, 5.1V, 9V, 12V output low dropout voltageregulator

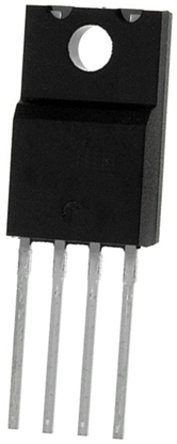

• TO-220 full-mold package 4pin

• Overcurrent protection, thermal shutdown

• Overvoltage protection, short circuit protection

• With output disable function

KA278RA05C

• Nominal 5V output without adjusting

• Output adjustable between 1.25V and 32V

• 2A output low dropout voltage regulator

• TO-220 full-mold package 4pin

• Overcurrent protection, thermal shutdown

• Overvoltage protection, short circuit protection
