对比图

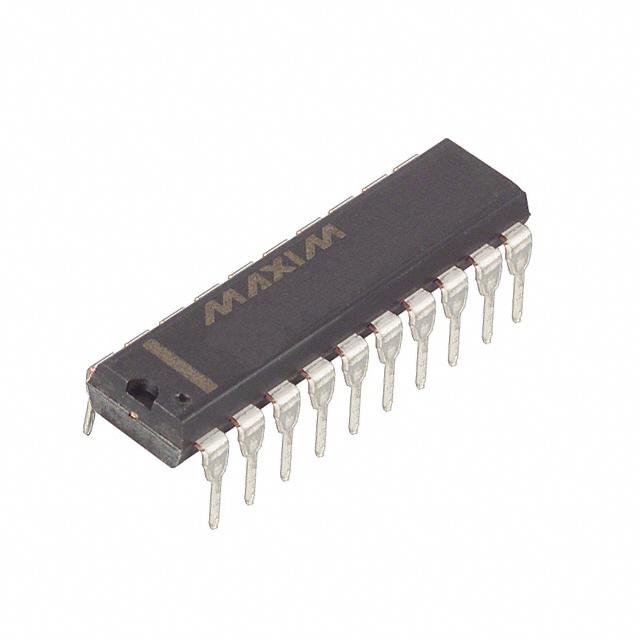

型号 MAX1204ACPP+ MAX1204BEPP+ MAX1204AEPP+
描述 Analog to Digital Converters - ADC 10Bit 8CH 133KSPS 5V Precision ADCADC, Successive Approximation, 10Bit, 1 Func, 8Channel, Serial Access, CMOS, PDIP20, 0.3INCH, ROHS COMPLIANT, PLASTIC, MS-001AE, DIP-20ADC, Successive Approximation, 10Bit, 1 Func, 8Channel, Serial Access, CMOS, PDIP20, 0.3INCH, ROHS COMPLIANT, PLASTIC, MS-001AE, DIP-20
数据手册 ---
制造商 Maxim Integrated (美信) Maxim Integrated (美信) Maxim Integrated (美信)
分类 AD转换器AD转换器AD转换器
安装方式 Through Hole Through Hole Through Hole
引脚数 20 20 20
封装 DIP-20 DIP-20 DIP-20
数字逻辑电平 SAR SAR SAR
通道数 4, 8 - -
位数 10 10 10
耗散功率 889 mW - 7.5 mW
采样率 133 ksps 133 ksps 133 ksps
输入数 4, 8 4, 8 4, 8
工作温度(Max) 70 ℃ - -
工作温度(Min) 0 ℃ - -
耗散功率(Max) 889 mW - 889 mW
模数转换数(ADC) - - 1
长度 26.54 mm - -
宽度 7.87 mm - -
高度 4.45 mm - -
封装 DIP-20 DIP-20 DIP-20
工作温度 0℃ ~ 70℃ -40℃ ~ 85℃ -40℃ ~ 85℃
产品生命周期 Unknown Unknown Unknown
包装方式 Tube Tube Tube
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free Lead Free
