对比图

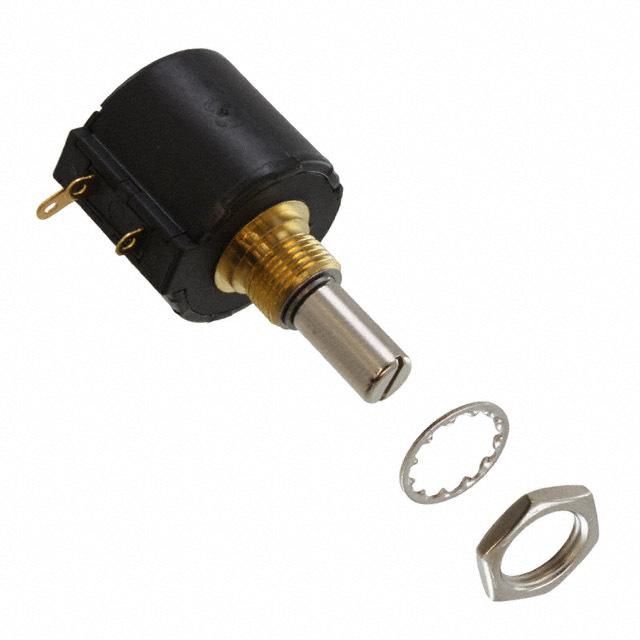

型号 3540S-1-502 3540S-1-502L 3549S-1AC-502B
描述 Res Wirewound POT 5KΩ 5% 2W 10(Elec)/10(Mech)Turn 6.34mm (22.23 X 39.67 X 26.99mm) Solder Lug Panel MountBOURNS 3540S-1-502L 旋转电位器, 绕线, 3540S系列, 5 kohm, 线性, 10 转, 2 W, 面板精密ポテンショメータ PRECISION POT-7/8 22MM DIA 10T WW
数据手册 ---
制造商 Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯)
分类 电位器电位器电位器
安装方式 Solder Lug, Panel Solder Lug, Panel Solder Lug, Panel
封装 Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm) Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm) -
额定电压(DC) 500 V 500 V -
容差 ±5 % ±5 % ±3 %
额定功率 2 W 2 W 2 W
电阻 5 kΩ 5 kΩ 5 kΩ
阻值偏差 ±5 % ±5 % -
额定电压(AC) - 447 V -
绝缘电阻 - 1000 MΩ -
工作温度(Max) - 125 ℃ -
工作温度(Min) - -40 ℃ -
长度 19.05 mm 39.67 mm -
直径 22.2 mm - -
封装 Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm) Round - 0.875" Dia x 0.750" H (22.23mm x 19.05mm) -
高度 - 26.99 mm -
工作温度 40℃ ~ 125℃ -40℃ ~ 125℃ -
温度系数 ±50 ppm/℃ ±50 ppm/℃ ±50 ppm/℃
产品生命周期 Obsolete Active Active
包装方式 Bulk Tray Tray
RoHS标准 Non-Compliant RoHS Compliant RoHS Compliant
含铅标准 Contains Lead Lead Free Lead Free
REACH SVHC标准 - No SVHC -
REACH SVHC版本 - 2016/06/20 -
ECCN代码 - EAR99 -
HTS代码 - 8533310000 -
