对比图

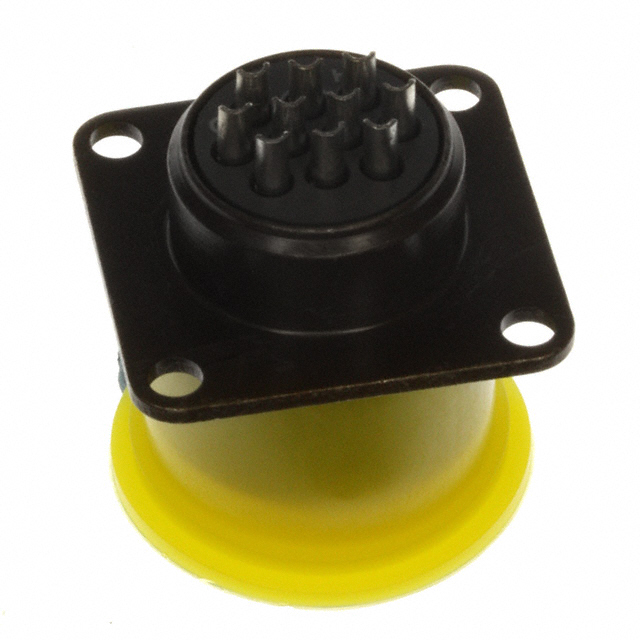

型号 85102E1210P50 451 02E 1210P 50 45102E12-10P50
描述 SOURIAU 85102E1210P50 圆形连接器, MIL-C-26482G Series I, 插座, 10 触点, 公, 焊接, 面板安装AMPHENOL SOCAPEX 451 02E 1210P 50 圆形连接器, 451 Series, MIL-DTL-26482 Series I Equivalent, 盒式安装插座, 10 触点, 焊接引脚, 卡口, 12-10AMPHENOL SOCAPEX 45102E12-10P50 Circular Connector, 451 Series, Box Mount Receptacle, 10Contacts, Solder Pin, Bayonet, 12-10
数据手册 ---
制造商 Souriau (苏里奥) Amphenol (安费诺) Amphenol (安费诺)
分类 圆形连接器圆形连接器圆形连接器
安装方式 Panel Solder, Panel Solder, Panel
触点数 10 10 10
极性 Female Female Female
触点电镀 Gold Gold Gold
拔插次数 500 500 500
工作温度(Max) 125 ℃ 125 ℃ -
工作温度(Min) -55 ℃ -55 ℃ -
额定电流 7.5 A - -
绝缘电阻 5000 Ω - -
针脚数 10 - -
接触电阻 5 Ω - -
触点材质 Copper Alloy Copper Alloy Copper Alloy
材质 Aluminum Alloy - -
工作温度 -55℃ ~ 125℃ - -
RoHS标准 Non-Compliant Non-Compliant Non-Compliant
军工级 Yes Yes -
REACH SVHC版本 2015/12/17 2015/06/15 2015/06/15
REACH SVHC标准 Contains SVHC - Contains SVHC
含铅标准 Contains Lead - -
产品生命周期 Discontinued at Digi-Key - -
包装方式 Bulk - -
