SOLC-150-02-S-Q和SOLC-150-02-S-Q-TR

对比图

型号 SOLC-150-02-S-Q SOLC-150-02-S-Q-TR

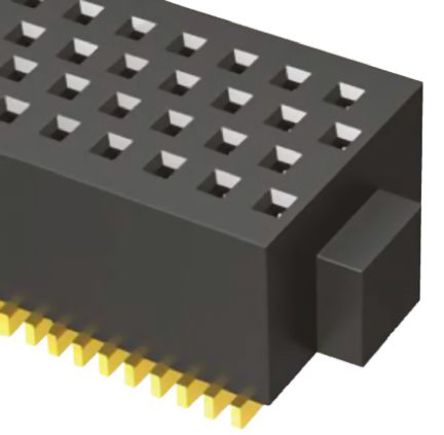

描述 Quad Row SMT Sockets - SOLC SeriesThe SOLC Series of FourRay SMT high density Sockets from samtec are a staggered quad row design. Contact and row pitch is 1.27 mm with a 0.635 mm offset in the contacts from row to row. This range of SOLC Series high density Sockets have 0.75 μm Gold plating on the contacts and 0.075 μm Gold plating on the tails. The above board height of these SOLC Series high density Sockets is 4.06 mm, with a mated height of 6.35 mm when using the corresponding TOLC high density terminal strips.### 注For mating TOLC high density terminal strips see stock number 765-6354 typical.### 1.27mm 板到板和线对板 SamtecConn Socket Strip SKT 200POS 0.635mm Solder ST SMD T/R

数据手册 --

制造商 Samtec (申泰电子) Samtec (申泰电子)

分类 插座插头插座

安装方式 Surface Mount Solder

引脚间距 1.27 mm -

触点数 200 200

极性 Female Female

触点电镀 Gold Gold

额定电流 2.5 A 2.50 A

排数 4 4

针脚数 200 -

接触电阻 10.0 mΩ 10.0 mΩ

拔插次数 100 100

额定电流(Max) 2.4A/触头 -

工作温度(Max) 125 ℃ -

工作温度(Min) -55 ℃ -

接触电阻(Max) 10 MΩ -

长度 64.0 mm -

宽度 6.35 mm -

高度 4.62 mm -

引脚间距 1.27 mm -

外壳颜色 Black -

颜色 Black Black

触点材质 Phosphor Bronze Phosphor Bronze

工作温度 -55℃ ~ 125℃ -

外壳材质 Plastic -

产品生命周期 Active Active

包装方式 Tube Tape & Reel (TR)

RoHS标准 RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free

REACH SVHC标准 No SVHC No SVHC

REACH SVHC版本 2015/06/15 2015/06/15
