对比图
型号 HF659/10 HF659/10SF

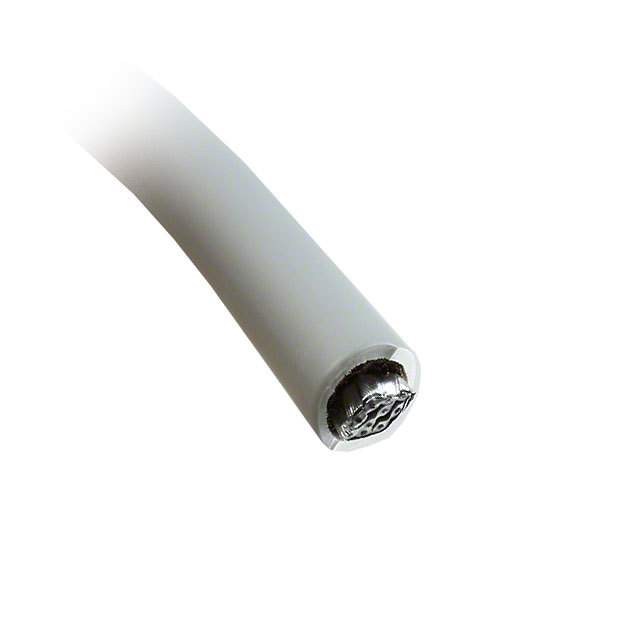

描述 Round Flat Cable 10Conductors 28AWG 83.82m Tin Plated Copper Dark Gray/Blue Edge 150V Roll3M(TM) Round, Shielded/Jacketed, Flat Cable, HF659 Series, 275Ft, Splice Free
数据手册 --
制造商 3M 3M
分类 扁平带状电缆扁平带状电缆
封装 - 100
线规 28 AWG 28 AWG
绝缘电阻 10 GΩ 10 GΩ
芯数 10 10
工作温度(Max) - 105 ℃
工作温度(Min) - -40 ℃
额定电压(Max) - 150 V
额定电压(DC) 50.0 V -
额定电压 50 V -
长度 83.82 m 1.52 m
封装 - 100
颜色 Gray Gray
工作温度 -15℃ ~ 75℃ -40℃ ~ 105℃
导体材质 Tinned Copper -
外壳材质 Polyolefin -
产品生命周期 Active Active
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free
REACH SVHC标准 No SVHC -
