对比图

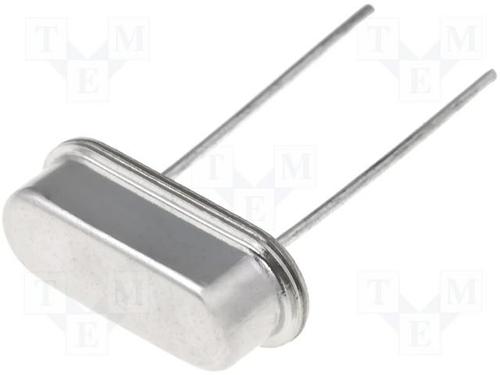

型号 HC49S-24-50-50-60-30-ATF LFXTAL003325 X24M000000L331
描述 MULTICOMP HC49S-24-50-50-60-30-ATF 晶振, HC-49/S, 24.0MHzIQD FREQUENCY PRODUCTS LFXTAL003325 晶振, 24MHZ, 30PF, HC49AEL CRYSTALS X24M000000L331 晶振, 24.000000MHZ
数据手册 ---
制造商 Multicomp IQD Frequency Products AEL Crystals
分类 晶振晶振晶振
安装方式 Through Hole Through Hole Through Hole
引脚数 2 2 2
封装 通孔, 10.9mm x 4.65mm 通孔, 11mm x 4.7mm 通孔, 11.05mm x 4.65mm
频率 24 MHz 24 MHz 24 MHz
频率稳定度 ±50 ppm ±50 ppm ±50 ppm
频率容差 ±50 ppm ±30 ppm ±50 ppm
等效串联电阻(ESR) - - 30.0 kΩ
负载电容 30 pF 30 pF 30 pF
工作温度(Max) 60 ℃ 60 ℃ 60 ℃
工作温度(Min) -10 ℃ -10 ℃ -10 ℃
封装 通孔, 10.9mm x 4.65mm 通孔, 11mm x 4.7mm 通孔, 11.05mm x 4.65mm
产品生命周期 - - Unknown
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 - - Lead Free
REACH SVHC标准 No SVHC No SVHC No SVHC
REACH SVHC版本 2015/12/17 2016/06/20 2015/12/17
