对比图
型号 SMP2-SOC SMTL2-SOC

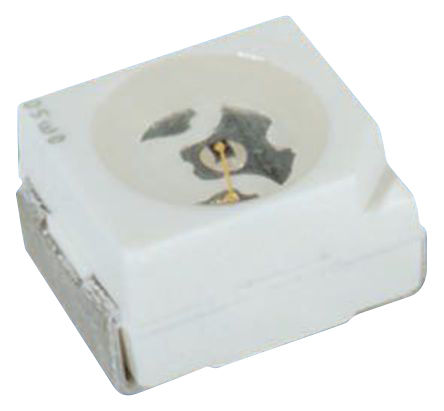

描述 Bivar SMP2 Series LEDsThe SMP2 series, from Bivar, are in the industry standard PLCC-2 package. They offer a high luminous intensity alongside a wide viewing angle in a variety of colour options. The SMP2 LEDs have a compact, low profile package which is ideal for applications where space is limited. The PLCC-2 package is also robust and therefore suitable for use in a variety of environmental conditions. With long life reliability and low power consumption, the SMP2 series of LEDs are suitable for use in battery power equipment. Other suitable applications include illumination, general indication and backlighting. The SMP2 LEDs can also be used in clusters for high luminous applications. ### 可见光 LED，BivarLED, SMD, PLCC2, Super Orange, 605nm, 800mcd, Water Clear Lens, 120Deg Viewing
数据手册 --
制造商 Bivar Bivar
分类 发光二极管光源与发射器
安装方式 Surface Mount Surface Mount
引脚数 2 2
封装 PLCC-2 PLCC-2
正向电压 1.9 V 1.9 V
波长 605 nm 605 nm
视角 120° 120°
测试电流 20 mA 20 mA
正向电压(Max) - 2.4 V
正向电流(Max) - 30 mA
工作温度(Max) 85 ℃ 85 ℃
工作温度(Min) -40 ℃ -40 ℃
耗散功率(Max) - 72 mW
额定功率 72 mW -
针脚数 2 -
发光强度 800 mcd -
峰值波长 605 nm -
耗散功率 72 W -
正向电流 20 mA -
封装 PLCC-2 PLCC-2
长度 3.2 mm -
宽度 2.8 mm -
高度 2 mm -
颜色 Orange Orange
外观颜色 Transparent -
产品生命周期 Obsolete Discontinued at Digi-Key
包装方式 Tape & Reel (TR) Tape & Reel (TR)
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free
