对比图

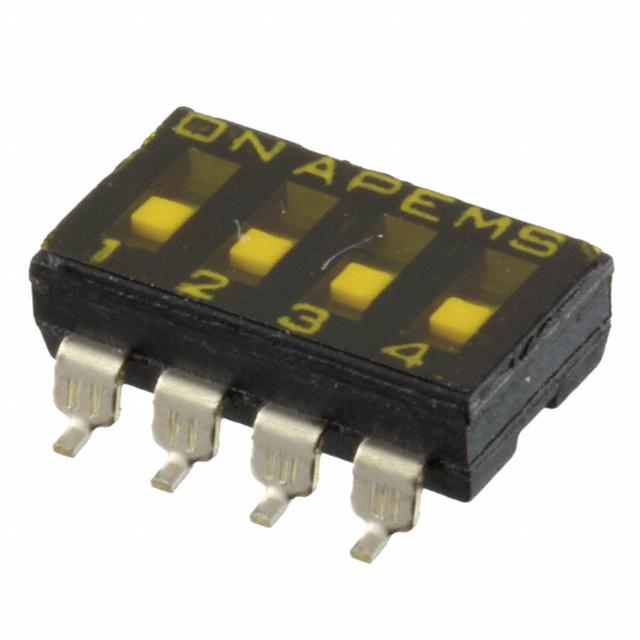

型号 DMR04T DMR04TTR 219-04MST
描述 APEM DMR04T DIP / SIP Switch, Flush Slide, 4Circuits, SPST, SMD, DIP Sealed, 24VDC开关, DIP, 4路, SPST, 顶部滑动式Slide Dip Switch, 4 Switches, SPST, Off-on, Latched, 0.1A, 20VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
数据手册 ---
制造商 Apem Components Apem Components CTS (西迪斯)
分类 DIP/SIPDIP/SIP
安装方式 Surface Mount Surface Mount -
封装 DIP-8 - -
额定电压(DC) 24 V 24 V -
触点类型 SPST SPST -
电路数 4 4 -
针脚数 4 4 4
额定电流(Max) 0.025 A 0.025 A 0.1A @20VDC
工作温度(Max) - 85 ℃ 85 ℃
工作温度(Min) - -20 ℃ -55 ℃
额定电压 24 VDC 24 VDC -
额定电压(DC Max) - 24 V 20 V
接触电阻(Max) - 50 mΩ 25 mΩ
额定电流 25 mA - -
长度 11.10 mm 11.1 mm 11.63 mm
宽度 9.8 mm 9.8 mm -
高度 3.7 mm 3.7 mm 3.8 mm
封装 DIP-8 - -
触点材质 Copper Alloy Copper Alloy -
工作温度 -20℃ ~ 85℃ -20℃ ~ 85℃ -
产品生命周期 Active Active 2000 Cycle(s)
包装方式 Tube Tape & Reel (TR) Tube
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free -
REACH SVHC版本 2016/06/20 2016/06/20 -
