20020316-G031B01LF和MKDS 1,5/3

对比图

型号 20020316-G031B01LF MKDS 1,5/3 691101710003

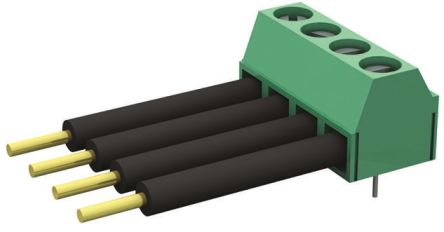

描述 5.0 mm Pitch FCI Terminal Block, Fixed Horizontal Wire InletRobust and solid design Rated at 16A End-to-end stackable Durability: 200 cycles AWG 12-28 ### 注Wires shown in image not supplied with connector.### 认可UL recognised for US and Canada### 5.0 mm Pitch FCI Terminal BlocksFCI’s PCB signal 5 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 5 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.PHOENIX CONTACT  MKDS 1,5/3  线至板接线端子, 3 路, 300 V, 10 A, 26 AWG, 14 AWG, 2.5 mm²WURTH ELEKTRONIK  691101710003  线至板接线端子, 3 路, 250 V, 16 A, 26 AWG, 14 AWG, 2 mm²

数据手册 ---

制造商 FCI Electronics (法马通) Phoenix (菲尼克斯) Wurth Electronics (伍尔特)

分类 接线端子接线端子接线端子

安装方式 Through Hole PC Board, PCB Through Hole

引脚间距 - 5.00 mm -

触点数 3 3 3

线规 12AWG ~ 28AWG 14.0 AWG 14AWG ~ 26AWG

触点电镀 Tin - Tin

额定电流 16 A 10 A 16 A

排数 01 - 1

电路数 3 - -

针脚数 3 3 3

额定电流(Max) 16A/触头 - -

工作温度(Max) 115 ℃ - -

工作温度(Min) -40 ℃ - -

额定电压(Max) 300 VAC - -

额定电压 300 V 300 V 250 V

工作电压(Max) 300 VAC - -

额定电压(AC) - 250 V -

长度 15.6 mm 15 mm 16.2 mm

宽度 9 mm 9.8 mm 9 mm

高度 13.5 mm 13.8 mm 12.6 mm

引脚间距 - 5.00 mm -

外壳颜色 Green - -

颜色 Green - Blue

触点材质 Brass - Brass

材质 Nylon - -

工作温度 -40℃ ~ 115℃ - -40℃ ~ 105℃

外壳材质 - Nylon 6/6 Nylon 6/6

产品生命周期 Active - Active

包装方式 Bulk - Bulk

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free Lead Free

REACH SVHC版本 2015/06/15 - 2014/06/16

REACH SVHC标准 - - No SVHC

ECCN代码 EAR99 - -
