对比图

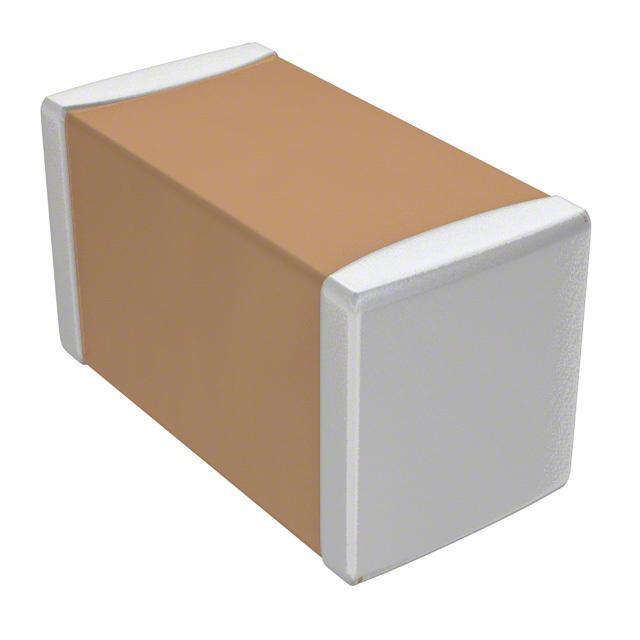

型号 CL10A226KQ8NRNE CL10A226MQ8NUNE CL10A226MQ8NRNC
描述 MLCC-多层陶瓷电容器MLCC-多层陶瓷电容器Samsung 0603 MLCC seriesHighly reliable tolerance and high speed automatic chip placement on PCBs Wide capacitance range Wide temperature compensation and voltage range: from C0G to Y5V and from 6.3V to 50V Highly reliable performance Highly resistant termination metal Applications include: HHP, DSC, DVC, LCD, TV, Memory Module, PDA, Game Machine; Tuner (Product code C is suitable.) For using special purpose like Military, Medical, Aviation, Automobile device should be following a special specification ### 陶瓷表面安装 0603
数据手册 ---
制造商 Samsung (三星) Samsung (三星) Samsung (三星)
分类 电容电容陶瓷电容
安装方式 Surface Mount Surface Mount Surface Mount
封装(公制) 1608 1608 1608
封装 0603 0603 0603
引脚数 - 2 -
额定电压(DC) 6.3 V 6.3 V 6.3 V
工作电压 - - 6.3 V
绝缘电阻 - - 10 GΩ
电容 22 µF 22 µF 22 µF
容差 ±10 % ±20 % ±20 %
产品系列 Acoustic Noise Acoustic Noise Acoustic Noise
工作温度(Max) 85 ℃ - 85 ℃
工作温度(Min) -55 ℃ - -55 ℃
精度 - - ±20 %
额定电压 6.3 V 6.3 V 6.3 V
长度 1.6 mm 1.6 mm 1.6 mm
宽度 0.8 mm 0.8 mm 0.80 mm
高度 0.8 mm 0.8 mm 0.8 mm
封装(公制) 1608 1608 1608
封装 0603 0603 0603
厚度 0.8 mm 0.8 mm 0.8 mm
材质 X5R/-55℃~+85℃ X5R/-55℃~+85℃ X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃ -55℃ ~ 85℃ -55℃ ~ 85℃
温度系数 - - ±15 %
产品生命周期 Active Active Active
包装方式 Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)
最小包装 3000 3000 4000
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free Lead Free
军工级 - - Yes
ECCN代码 - - EAR99
