对比图

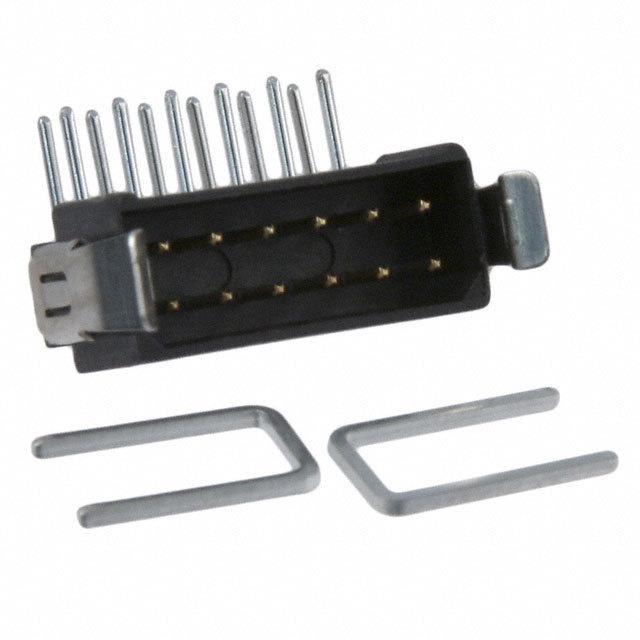

型号 M80-8391242 M80-8681222 M80-8681205
描述 HARWIN M80-8391242 Wire-To-Board Connector, 2mm, 12Contacts, Header, Datamate L-Tek M80 Series, Through Hole, 2RowsHARWIN M80-8681222 Wire-To-Board Connector, 2mm, 12Contacts, Header, Datamate L-Tek M80 Series, Through Hole, 2Rows集管和线壳 6+6 POS DIL MALE R/A UNLATCHED GOLD
数据手册 ---
制造商 Harwin Harwin Harwin
分类 板对板连接器线对板连接器插头插座
安装方式 Through Hole Through Hole Through Hole
引脚间距 2.01 mm - -
触点数 12 12 -
极性 Male Male -
触点电镀 Gold Gold -
额定电流 2.2A/触头 2.2A/触头 2.2A/触头
排数 2 2 2
针脚数 12 12 12
额定电压 120 V 120 V 120 V
额定电流(Max) - 3 A -
接触电阻(Max) - 25 mΩ -
引脚间距 2.01 mm - -
颜色 Black Black -
触点材质 Phosphor Bronze Phosphor Bronze Phosphor Bronze
工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -55℃ ~ 125℃
外壳颜色 - Black -
产品生命周期 Obsolete Active Active
包装方式 Tube Tube -
RoHS标准 RoHS Compliant RoHS Compliant Non-Compliant
含铅标准 Lead Free Contains Lead Contains Lead
REACH SVHC标准 No SVHC - -
REACH SVHC版本 2015/12/17 2015/12/17 -
