对比图
型号 LT3959IUHE#TRPBF LT3959IUHE#PBF LT3959EUHE#TRPBF
描述 LT3959 - Wide Input Voltage Range Boost/SEPIC/Inverting Converter with 6A, 40V SwitchLINEAR TECHNOLOGY LT3959IUHE#PBF DC-DC Controller, Current Mode, 1.6V to 40V, 1 Output, Boost, Inverting, SEPIC, 1MHz, QFN-36LT3959 - Wide Input Voltage Range Boost/SEPIC/Inverting Converter with 6A, 40V Switch
数据手册 ---
制造商 Linear Technology (凌力尔特) Linear Technology (凌力尔特) Linear Technology (凌力尔特)
分类 DC/DC转换器DC/DC转换器DC/DC转换器
安装方式 Surface Mount Surface Mount Surface Mount
引脚数 - 36 -

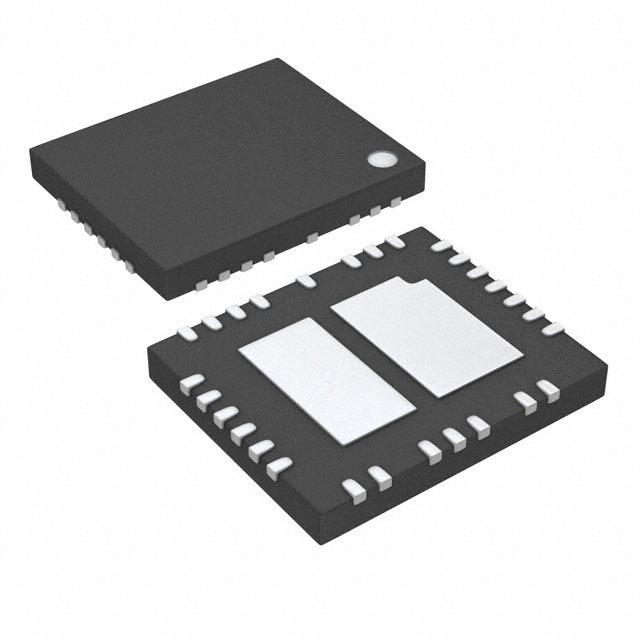

封装 WFQFN-36 WFQFN-36 WFQFN-36
电源电压(DC) - 1.60V (min) -
输出接口数 1 1 1
输出电流 - 6 A -
开关频率 100kHz ~ 1MHz 100kHz ~ 1MHz 100kHz ~ 1MHz
输入电压(Max) 40 V 40 V 40 V
输入电压(Min) 1.6 V 1.6 V 1.6 V
输出电压(Min) 0.8 V 0.8 V 0.8 V
工作温度(Max) - 125 ℃ -
工作温度(Min) - -40 ℃ -
电源电压(Max) - 40 V -
电源电压(Min) - 1.6 V -
输入电压 - 1.6V ~ 40V -
封装 WFQFN-36 WFQFN-36 WFQFN-36
工作温度 -40℃ ~ 125℃ (TJ) -40℃ ~ 125℃ (TJ) -40℃ ~ 125℃ (TJ)
产品生命周期 Unknown Unknown Unknown
包装方式 Tape & Reel (TR) Cut Tape (CT) Tape & Reel (TR)
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free Lead Free
REACH SVHC版本 - 2015/12/17 -
