对比图

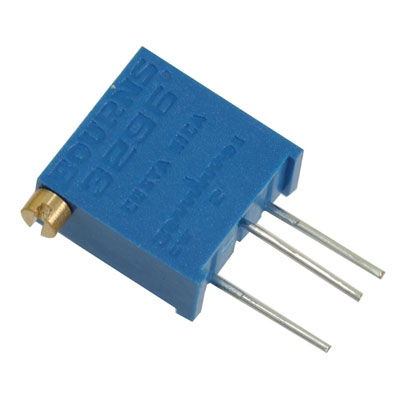

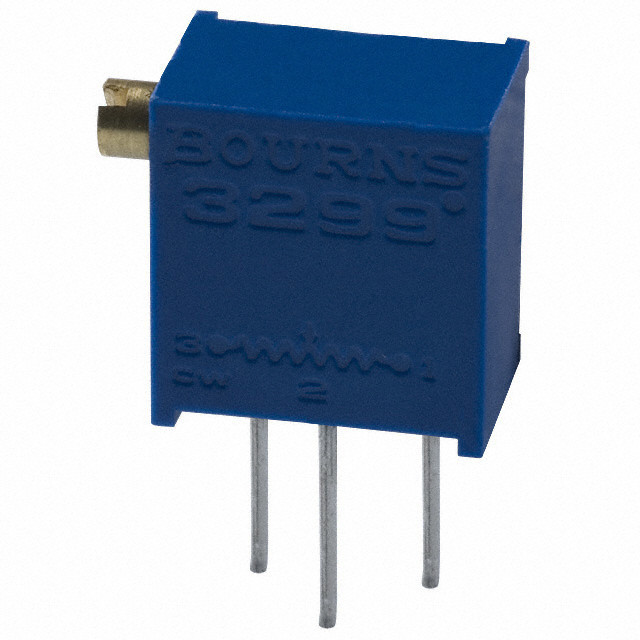

型号 3299Z-1-102 3299Z-1-102LF 3296Z-1-102
描述 3/8广场微调电位器 3/8 Square Trimming Potentiometer3/8广场微调电位器 3/8 Square Trimming PotentiometerResistor Trimmer 1K Ohm 10% 0.5W(1/2W) 25 Turn 2.19mm Pin Through Hole Tube
数据手册 ---
制造商 Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯)
分类 电位器电位器电位器
安装方式 Through Hole Through Hole Through Hole
封装 - Square - 0.395" L x 0.375" W x 0.240" H (10.03mm x 9.53mm x 6.10mm) -
绝缘电阻 - 1000 MΩ -
容差 ±10 % ±10 % ±10 %
额定功率 0.5 W 0.5 W 0.5 W
电阻 1 KΩ 1 kΩ 1 kΩ
阻值偏差 ±10 % ±10 % ±10 %
工作温度(Max) 125 ℃ 125 ℃ 125 ℃
工作温度(Min) -55 ℃ -55 ℃ -55 ℃
额定电压(DC) - - 500 V
长度 9.52 mm 11.05 mm 9.53 mm
宽度 6.10 mm 6.1 mm 4.83 mm
高度 10.03 mm 10.03 mm 10.03 mm
封装 - Square - 0.395" L x 0.375" W x 0.240" H (10.03mm x 9.53mm x 6.10mm) -
厚度 - - 5.59 mm
颜色 Blue Blue Blue
重量 992 mg 992 mg 850 mg
工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -55℃ ~ 150℃
温度系数 ±100 ppm/℃ ±100 ppm/℃ ±100 ppm/℃
产品生命周期 Active Active Active
包装方式 Tube Tube Tube
RoHS标准 Non-Compliant RoHS Compliant Non-Compliant
含铅标准 Contains Lead Lead Free Contains Lead
REACH SVHC版本 - 2016/06/20 -
ECCN代码 - EAR99 -
HTS代码 - 8533408050 -
