对比图
型号 LP2985AITL-3.3/NOPB LP2985AITLX-3.3/NOPB LP2985AITLX-3.3
描述 微150毫安低噪音超低压降稳压器，采用SOT -23和DSBGA设计用于非常低ESR输出电容器的软件包 Micropower 150 mA Low-Noise Ultra Low-Dropout Regulator in SOT-23 and DSBGA Packages Designed for Use with Very Low ESR Output Capacitors微150毫安低噪音超低压降稳压器，采用SOT -23和DSBGA设计用于非常低ESR输出电容器的软件包 Micropower 150 mA Low-Noise Ultra Low-Dropout Regulator in SOT-23 and DSBGA Packages Designed for Use with Very Low ESR Output Capacitors3.3V FIXED POSITIVE LDO REGULATOR, 0.575V DROPOUT, PBGA5, PLASTIC, MICRO, SMD-5
数据手册 ---
制造商 TI (德州仪器) TI (德州仪器) TI (德州仪器)
分类 稳压芯片稳压芯片

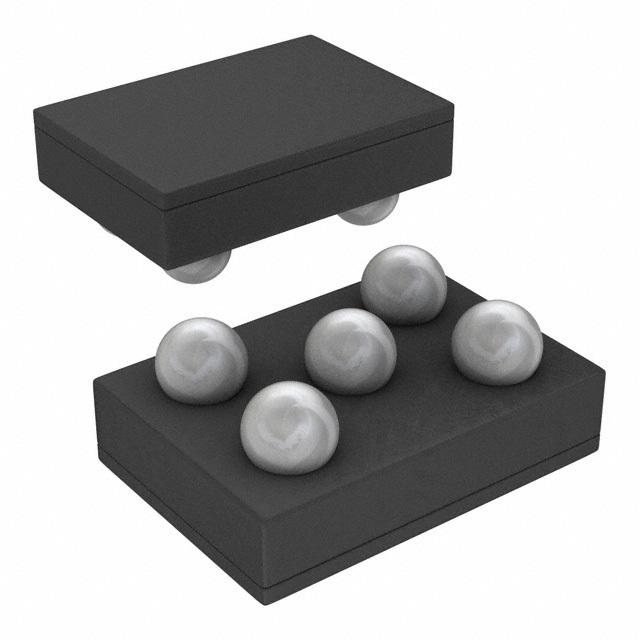

封装 WFBGA-5 WFBGA-5 VFBGA
安装方式 Surface Mount Surface Mount -
引脚数 - 5 -
封装 WFBGA-5 WFBGA-5 VFBGA
产品生命周期 Obsolete Obsolete Obsolete
包装方式 Tape & Reel (TR) Tape & Reel (TR) -
容差 4 % - -
输出电压 3.3 V 3.3 V -
输出电流 150 mA 150 mA -
静态电流 65.0 µA 0.065 mA -
输出电容类型 Ceramic Ceramic -
跌落电压 280 mV 0.007V @1mA,0.12V @50mA,0.0001V @0mA,0.28V @150mA,0.04V @10mA -
调节输出数 1 1 -
输入电压(Max) 16 V 16 V -
输入电压(Min) 2.5 V 2.5 V -
工作温度(Max) 125 ℃ 125 ℃ -
工作温度(Min) -40 ℃ -40 ℃ -
输入电压 ≤16 V ≤16 V -
输出接口数 - 1 -
输出电流(Max) - 0.15 A -
精度 - ±2.5 % -
工作温度 -40℃ ~ 125℃ -40℃ ~ 125℃ -
RoHS标准 RoHS Compliant RoHS Compliant -
含铅标准 Lead Free Lead Free -
