对比图
型号 L-1503EB/2ID L-1503EB/2YD L-1503EB/2SRD

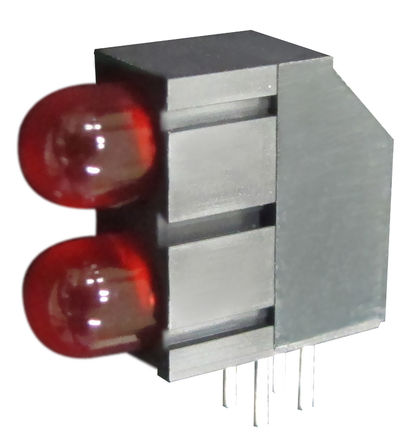

描述 Kingbright 5mm Bi-Level LED IndicatorsThis family of PCB LED indicators, from Kingbright, consist of 5mm (T-1 3/4) through-hole LEDs within a black plastic package. The LEDs are mounted at a right angle, one on top of the other, for optimisation of board space. Features of the bi-level LED indicators: Variety of colours 5mm (T-1 3/4) LEDs Black plastic housing Right angle ### 印刷电路板 LED 指示灯，KingbrightKINGBRIGHT L-1503EB/2YD Circuit Board Indicator, Yellow, 2 LED"s, Through Hole, T-1 3/4 (5mm), 20mA, 30mcdKingbright 5mm Bi-Level LED IndicatorsThis family of PCB LED indicators, from Kingbright, consist of 5mm (T-1 3/4) through-hole LEDs within a black plastic package. The LEDs are mounted at a right angle, one on top of the other, for optimisation of board space. Features of the bi-level LED indicators: Variety of colours 5mm (T-1 3/4) LEDs Black plastic housing Right angle ### 印刷电路板 LED 指示灯，Kingbright
数据手册 ---
制造商 Kingbright Kingbright Kingbright
分类 光源与发射器发光二极管发光二极管(离散)
安装方式 Through Hole Through Hole Through Hole
引脚数 4 2 -
封装 T-1 T-1 -
工作电压 2V ~ 2.5V 2.1V ~ 2.5V 1.85V ~ 2.5V
针脚数 4 - 4
正向电压 2.00 V 2.1 V 1.85 V
波长 625 nm 588 nm 640 nm
发光强度 30.0 mcd 30 mcd 700 mcd
视角 60° 60° 60°
峰值波长 627 nm 590 nm -
测试电流 10 mA - -
正向电压(Max) 2.5 V - -
正向电流(Max) 30 mA 30 mA -
工作温度(Max) 85 ℃ - -
工作温度(Min) -40 ℃ - -
耗散功率(Max) 75 mW 75 mW -
电源电压 2.5 V - 2.5 V
耗散功率 - 75 mW -
正向电流 - 20 mA 30 mA
长度 15.5 mm - 15.5 mm
宽度 6.1 mm 6.1 mm 6.1 mm
高度 12.6 mm 12.6 mm 12.6 mm
封装 T-1 T-1 -
颜色 Red Yellow -
工作温度 - -40℃ ~ 85℃ -
产品生命周期 Active Active Active
包装方式 Bag Tube Each
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 - Lead Free Lead Free
REACH SVHC标准 - No SVHC No SVHC
REACH SVHC版本 - 2015/12/17 2015/12/17
