对比图

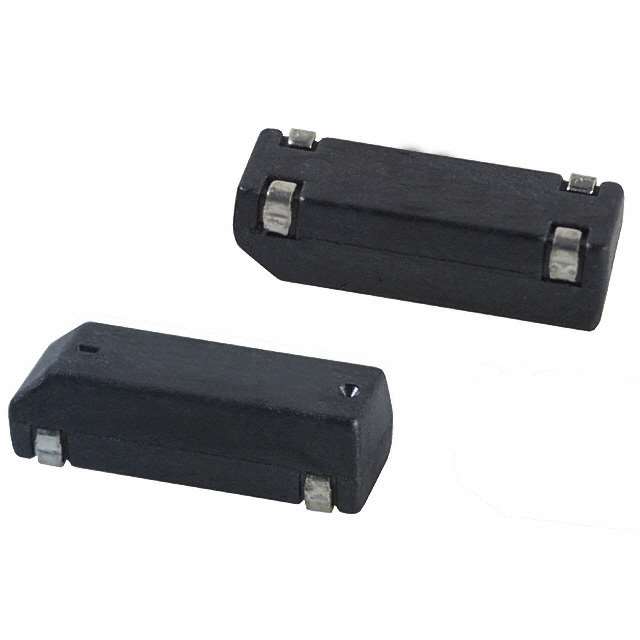

型号 ECS-42-12-7SX-TR CM309S4.194304MABJTR ECS-42-12-7S-TR
描述 Crystal 4.194304MHz ±30ppm (Tol) ±50ppm (Stability) 12pF FUND 150Ω 4Pin SMD T/RCRYSTAL 4.194304MHz 18pF SMDCrystal 4.194304MHz 12pF SMD
数据手册 ---
制造商 ECS Citizen Finedevice ECS
分类 晶振晶振晶振
安装方式 Surface Mount Surface Mount Surface Mount
引脚数 4 - -
封装 SOJ-4 SOJ-4 SOJ-4
频率 4.194304 MHz 4.194304 MHz 4.194304 MHz
频率稳定度 ±50 ppm ±50 ppm ±50 ppm
频率容差 ±30 ppm ±30 ppm ±30 ppm
等效串联电阻(ESR) 150 Ω 150 Ω 150 Ω
负载电容 12 pF 18 pF 12 pF
工作温度(Max) 70 ℃ - -
工作温度(Min) -10 ℃ - -
长度 12.5 mm - 12.5 mm
高度 3.70 mm - 3.70 mm
封装 SOJ-4 SOJ-4 SOJ-4
工作温度 -10℃ ~ 70℃ -10℃ ~ 60℃ -10℃ ~ 70℃
产品生命周期 Not Recommended Obsolete Discontinued at Digi-Key
包装方式 Tape & Reel (TR) - Tape & Reel (TR), Cut Tape (CT)
RoHS标准 RoHS Compliant Non-Compliant Non-Compliant
含铅标准 Lead Free Contains Lead Contains Lead
