对比图

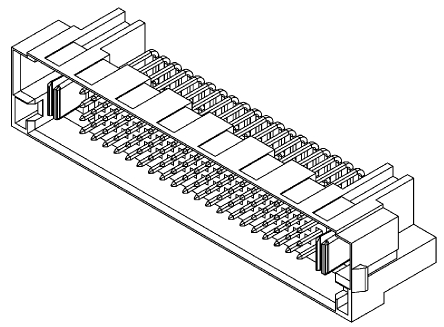

型号 MPTC-02-24-02-01-01-L-RA-LC MPTC-02-24-02-01-01-L-RA-SD MPTC-02-24-02-6.30-01-L-V
描述 Conn Mini-Power Terminal Strip HDR 4Power/24Signal POS Solder RA Thru-Hole 48 Terminal 1PortConn Mini-Power Terminal Strip HDR 4Power/24Signal POS Solder RA Thru-Hole 48 Terminal 1Port2 mm 25 A Signal Power System - MPTC SeriesThese MPTC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Terminal Backplane strips have 0.25 μm Gold plating on the contact area and Matte Tin plating on the PCB tails. This range of MPTC Series of 2 mm pitch, 25 A, Signal, Power, Combo System hybrid Terminal Backplane strip are available in Vertical and Horizontal / Right Angle configurations with the Right Angle versions having a Screw Down feature, Ø3.56 mm, see stock numbers 767-7004 and 767-7010 .Insulator Material: Black LCP Operating temperature range: -55 → 105 °C MPTC-xx-xx-**01**-6.30-01-L-V: suitable for 1.57 mm thick PCBs MPTC-xx-xx-**02**-6.30-01-L-V: suitable for 3.18 mm thick PCBs MPTC-xx-xx-**01**-xx-xx-L-RA-SD: suitable for 1.57 mm thick PCBs MPTC-xx-xx-**02**-xx-xx-L-RA-SD: suitable for 3.18 mm thick PCBs ### 注For mating MPSC Series Sockets see stock number 767-6963 typical.### Samtec - Hybrid Combo Systems
数据手册 ---
制造商 Samtec (申泰电子) Samtec (申泰电子) Samtec (申泰电子)
分类 连接器连接器与适配器插针
安装方式 Through Hole Through Hole Through Hole
极性 Male Male Male
排数 4 4 4
工作温度(Max) 105 ℃ 105 ℃ 105 ℃
工作温度(Min) -55 ℃ -55 ℃ -55 ℃
触点数 - - 28
触点电镀 - - Gold, Gold over Nickel
额定电流 - - 24.7 A
额定电流(Max) - - 28.8A/触头
额定电压 - - 363VDC, 848VDC
高度 12.45 mm 12.45 mm 11.38 mm
工作温度 -55℃ ~ 105℃ -55℃ ~ 105℃ -55℃ ~ 105℃
颜色 - - Black
触点材质 - - Copper Alloy
产品生命周期 Active Active Active
包装方式 Tray Tray Tray
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 Lead Free 无铅 无铅
REACH SVHC标准 - - No SVHC
REACH SVHC版本 - - 2015/06/15
