20020316-H071B01LF和VI07215500J0G

对比图

型号 20020316-H071B01LF VI07215500J0G

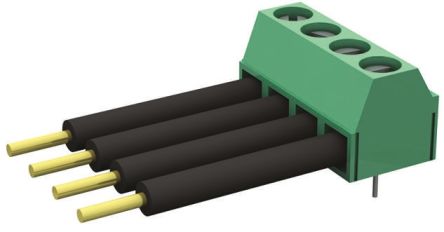

描述 5.08 mm Pitch FCI Terminal Block, Fixed Horizontal Wire InletRobust and solid design Rated at 16A End-to-end stackable Durability: 200 cycles AWG 12-28 ### 注Wires shown in image not supplied with connector.### 认可UL recognised for US and Canada### 5.08 mm Pitch FCI Terminal BlocksFCI’s PCB signal 5.08 mm pitch Terminal Blocks. Featuring proven high performance Cage clamp technology that ensures a perfect connection time after time. These 5.08 mm pitch signal terminal blocks are suitable for for a wide variety of applications including: industrial, instrumentation and communication systems.Vi07215500j0g-508 Tb Ris Cla 1 Terminal Blocks

数据手册 --

制造商 FCI Electronics (法马通) FCI Electronics (法马通)

分类 接线端子接线端子

安装方式 Through Hole Through Hole

触点数 7 -

线规 12AWG ~ 28AWG 12AWG ~ 28AWG

触点电镀 Tin -

额定电流 16 A -

排数 1 -

电路数 7 -

针脚数 7 -

额定电流(Max) 16A/触头 -

工作温度(Max) 115 ℃ -

工作温度(Min) -40 ℃ -

额定电压(Max) 300 VAC -

额定电压 300 V -

工作电压(Max) 300 VAC -

高度 13.5 mm -

外壳颜色 Green -

颜色 Green Green

触点材质 Brass, Steel -

材质 Nylon -

工作温度 -40℃ ~ 115℃ -40℃ ~ 115℃

包装方式 Bulk Bulk

RoHS标准 RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free

REACH SVHC版本 2015/06/15 -
