对比图

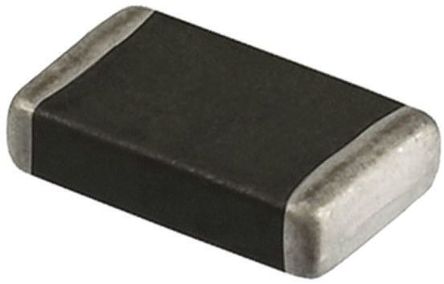

型号 82550200 MCVZ0805M260AGT
描述 SMD Power Varistors WE-VS SeriesAfter a surge impulse the varistors works immediately in normal mode so there is no slip current Excellent absorption Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220 Nickel barrier for lead-free soldering ### 标准Surge protection in accordance with EN-61000-4-5 ESD protection in accordance with EN-61000-4-2 Burst protection in accordance with EN-61000-4-4### 瞬态电压抑制器 (径向金属氧化物变阻器)MULTICOMP MCVZ0805M260AGT TVS压敏电阻, VZ系列, 20 V, 26 V, 54 V, 0805 [2012 公制], 静电保护器
数据手册 --
制造商 Wurth Electronics (伍尔特) Multicomp
分类 压敏电阻压敏电阻
安装方式 Surface Mount Surface Mount
封装(公制) 2012 2012
封装 0805 0805
额定电压(DC) 26 V 26 V
额定电压(AC) 20 V 20 V
钳位电压 54 V 54 V
工作温度(Max) 85 ℃ 125 ℃
工作温度(Min) -40 ℃ -55 ℃
电容 350 pF -
电路数 1 -
额定电压(DC Max) 26 V -
额定电压(AC Max) 20 V -
长度 2 mm 2 mm
宽度 1.25 mm 1.25 mm
封装(公制) 2012 2012
封装 0805 0805
高度 1.2 mm -
工作温度 -40℃ ~ 125℃ (TA) -55℃ ~ 125℃
包装方式 Tape & Reel (TR) Cut Tape (CT)
产品生命周期 Active -
RoHS标准 RoHS Compliant RoHS Compliant
REACH SVHC标准 No SVHC No SVHC
REACH SVHC版本 - 2016/06/20
含铅标准 Lead Free -
