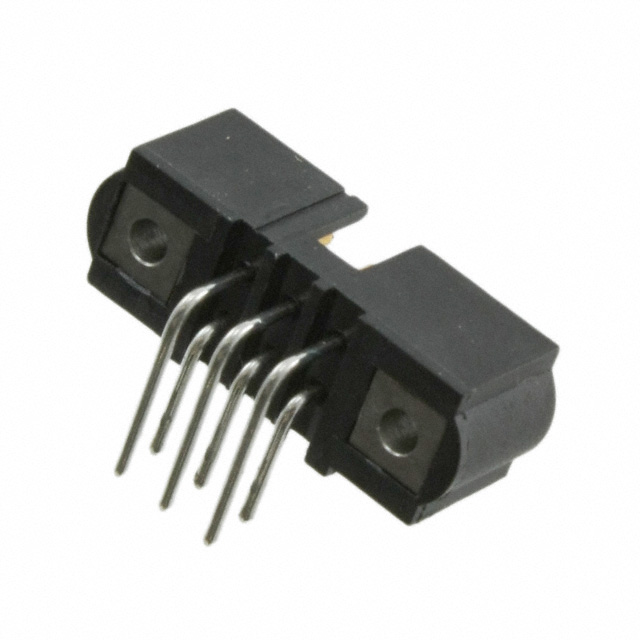

M80-5L10622MC和M80-5L10642MC

对比图

型号 M80-5L10622MC M80-5L10642MC M80-5L10605MC-00-000-00-000

描述 Headers & Wire Housings 2+3POS MALE HORIZONTAL PC TAIL集管和线壳 3+3 POS R/A MALE W/101 HARDWAREBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

数据手册 ---

制造商 Harwin Harwin Harwin

分类 插头插座线对板连接器

安装方式 Through Hole Through Hole -

额定电流 20A, 3A 3.00 A -

排数 2 2 -

针脚数 6 6 -

额定电压 360 V - -

触点数 - 6 -

极性 - Male -

触点电镀 - Gold -

绝缘电阻 - 100 MΩ -

易燃性等级 - UL 94 V-0 -

接触电阻 - 25.0 mΩ -

工作温度(Max) - 125 ℃ -

工作温度(Min) - -55 ℃ -

颜色 Black Black -

触点材质 Phosphor Bronze Phosphor Bronze -

产品生命周期 Active Active Obsolete

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Contains Lead Lead Free -

REACH SVHC标准 - No SVHC -

REACH SVHC版本 - 2015/12/17 -

长度 - 16 mm -

宽度 - 8 mm -

高度 - 6.05 mm -
