0877131005和0877131006

对比图 P4CE10F17C6N中文资料P4CE10F17C6N中文资料

型号 0877131005 0877131006

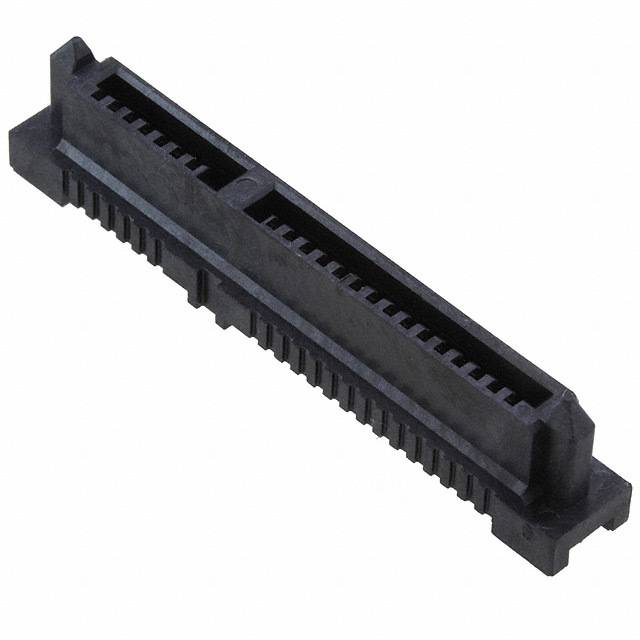

描述 1.27毫米( .050 “ )间距串行ATA主机插座,表面贴装,立式, StandardHeight ,与1.05毫米( 0.041 ” )塑料定位钉, 0.76μm ( 30μ “),金(Au ) SelectivePlating ,无卡普顿胶带,托盘包装22电路,无铅 1.27mm (.050") Pitch Serial ATA Host Receptacle, Surface Mount, Vertical, StandardHeight, with 1.05mm (.041") Plastic Locating Peg, 0.76μm (30μ") Gold (Au) SelectivePlating, without Kapton Tape, Tray Packaging, 22 Circuits, Leadfree1.27毫米( .050 “ )间距串行ATA主机插座,表面贴装,立式, StandardHeight ,与1.05毫米( 0.041 ” )塑料定位钉, 0.76μm ( 30μ “),金(Au )选择性 1.27mm (.050") Pitch Serial ATA Host Receptacle, Surface Mount, Vertical, StandardHeight, with 1.05mm (.041") Plastic Locating Peg, 0.76μm (30μ") Gold (Au) Selective

数据手册 --

制造商 Molex (莫仕) Molex (莫仕)

分类 连接器与适配器连接器与适配器

基础参数对比

安装方式 Surface Mount Surface Mount

极性 - Male

针脚数 22 22

拔插次数 500 500

额定电流(Max) 1.5A/触头 1.5A/触头

工作温度(Max) 105 ℃ 105 ℃

工作温度(Min) -40 ℃ -40 ℃

额定电压(Max) 30 V 30 V

接触电阻(Max) 30 mΩ -

高度 9.85 mm 9.85 mm

触点材质 Copper Alloy Copper Alloy

产品生命周期 Unknown Unknown

包装方式 Tray Tray

RoHS标准 RoHS Compliant RoHS Compliant

含铅标准 Lead Free Lead Free

ECCN代码 EAR99 EAR99
