LL1005-FHL22NJ和LL1005-FHL2N2S

对比图

型号 LL1005-FHL22NJ LL1005-FHL2N2S LL-1005FHL22NJ

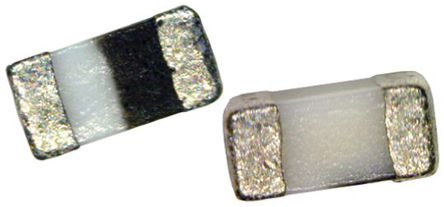

描述 Toko 0402 LL1005-FHL Series Multilayer Ceramic InductorsHighly reliable Multilayer SMD Inductor with a Dual frequency standard per inductance value, plated terminals, integrated ceramic structure and tight physical tolerance dimensions (±0.05mm). Supports high temperature reflow soldering (260°C, 3 times) and flow soldering Expanding operating temperature range (-55°C ∼ +125°C) Extended applicable frequency range (∼ 10GHz) ### 表面安装 0402 电感器（扼流圈）Toko 0402 LL1005-FHL Series Multilayer Ceramic InductorsHighly reliable Multilayer SMD Inductor with a Dual frequency standard per inductance value, plated terminals, integrated ceramic structure and tight physical tolerance dimensions (±0.05mm). Supports high temperature reflow soldering (260°C, 3 times) and flow soldering Expanding operating temperature range (-55°C ∼ +125°C) Extended applicable frequency range (∼ 10GHz) ### 表面安装 0402 电感器（扼流圈）General Purpose Inductor, 0.022uH, 5%, 1 Element, Ceramic-Core, SMD, 0402, CHIP, 0402, ROHS COMPLIANT

数据手册 ---

制造商 TOKO TOKO TOKO

分类 贴片电感电感

安装方式 Surface Mount Surface Mount -

封装 0402 0402 -

封装(公制) - 1005 -

容差 ±5 % - -

电感 22 nH 2.2 nH -

自谐频率 2100 MHz 11000 MHz -

测试频率 100 MHz 100 MHz -

电阻(DC） 0.7 Ω 0.15 Ω -

工作温度(Max) 125 ℃ 125 ℃ -

工作温度(Min) -55 ℃ -55 ℃ -

电阻(DC Max) 700 mΩ 150 mΩ -

长度 1 mm 1 mm -

高度 0.5 mm 0.5 mm -

封装 0402 0402 -

宽度 - 0.5 mm -

封装(公制) - 1005 -

产品生命周期 Active Active Obsolete

包装方式 Tape & Reel (TR) Tape & Reel (TR) -

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
