对比图
型号 IHLP2020CZERR47M01 SRP5030T-R47M

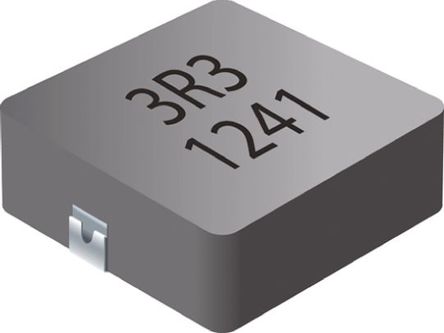

描述 IHLP2020CZ-01 Series Magnetically Shielded Wire Wound ChokesVishay IHLP-2020CZ-01 series high current low profile shielded inductors. The IHLP-2020CZ-01 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction.Frequency range up to 5.0 MHz Lowest DC Resistance / μH, in this package sizeApplications include: PDA/notebook/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)### Vishay 非标准表面安装电感器（扼流圈）BOURNS SRP5030T-R47M 表面贴装功率电感器, SRP5030T系列, 470 nH, ± 20%, 屏蔽, 7400 µohm, 12 A
数据手册 --
制造商 VISHAY (威世) Bourns J.W. Miller (伯恩斯)
分类 贴片电感贴片电感
安装方式 Surface Mount Surface Mount
封装 2020 2020
引脚数 - 2
额定电流 12.2 A 12 A
容差 ±20 % ±20 %
电感 470 nH 470 nH
产品系列 IHLP -
电感公差 ±20 % ±20 %
测试频率 100 kHz 100 kHz
电阻(DC） ≤7.04 mΩ ≤7.4 mΩ
工作温度(Max) 125 ℃ 125 ℃
工作温度(Min) -55 ℃ -40 ℃
电阻(DC Max) 0.00704 Ω 0.0074 Ω
自谐频率 - 100 kHz
长度 5.49 mm 5.7 mm
高度 3 mm 3 mm
封装 2020 2020
宽度 - 5.4 mm
工作温度 -55℃ ~ 125℃ -40℃ ~ 125℃
产品生命周期 Active Active
包装方式 Tape & Reel (TR) Cut Tape (CT)
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free 无铅
REACH SVHC标准 - No SVHC
REACH SVHC版本 - 2016/06/20
