对比图

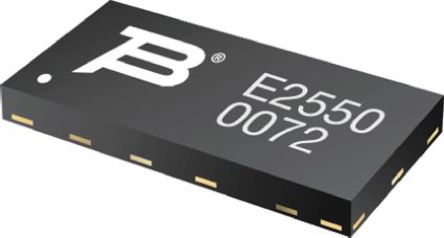

型号 TBU-KE025-050-WH TBU-KE025-100-WH
描述 TBU高速保护器 TBU High Speed ProtectorsBourns TBU High Speed Circuit Protector, KE Series The TBU-KE series of Bourns TBU are low capacitance unidirectional high speed surge protectors designed to protect against faults caused by short circuits, induction and lightning surges and AC power cross.These TBU circuit protectors will trip in less than 1 μs when the current reaches the maximum value in one direction. The TBU KE series circuit protector blocks sudden surges in voltage or current and provides a barrier behind which electronics will not be exposed to damage. Post surge, the TBU device resets when the voltage across the TBU device falls to the Vreset level. Typical applications include Ethernet ports, protection modules, dongles and process control equipment. Superior circuit protection Overcurrent and overvoltage protection Blocks surges up to rated limits High speed performance Small SMT package Operating temperature range -40°C → +85°C 注 Maximum voltage shown is peak impulse voltage wi
数据手册 --
制造商 Bourns J.W. Miller (伯恩斯) Bourns J.W. Miller (伯恩斯)
分类 电路保护器件TVS二极管
安装方式 Surface Mount Surface Mount
引脚数 10 10
封装 DFN-2 DFN-2
工作电压 100 V 100 V
电路数 1 1
钳位电压 250 V 250 V
工作温度(Max) 125 ℃ 125 ℃
工作温度(Min) -40 ℃ -40 ℃
额定电压(DC) 100 V -
额定电流 50 mA -
输出电流 75 mA -
静态电流 0.5 mA -
额定电压 100 V -
长度 5 mm 5 mm
宽度 2.5 mm 2.5 mm
高度 0.85 mm 0.85 mm
封装 DFN-2 DFN-2
产品生命周期 New Technology: Cutting edge technology for the newest designs. Obsolete
包装方式 Tape & Reel (TR) Tape & Reel (TR)
RoHS标准 RoHS Compliant RoHS Compliant
含铅标准 Lead Free Lead Free
REACH SVHC标准 No SVHC -
REACH SVHC版本 2016/06/20 -
工作温度 -40℃ ~ 85℃ -
