M80-8770722和M80-8820742

对比图

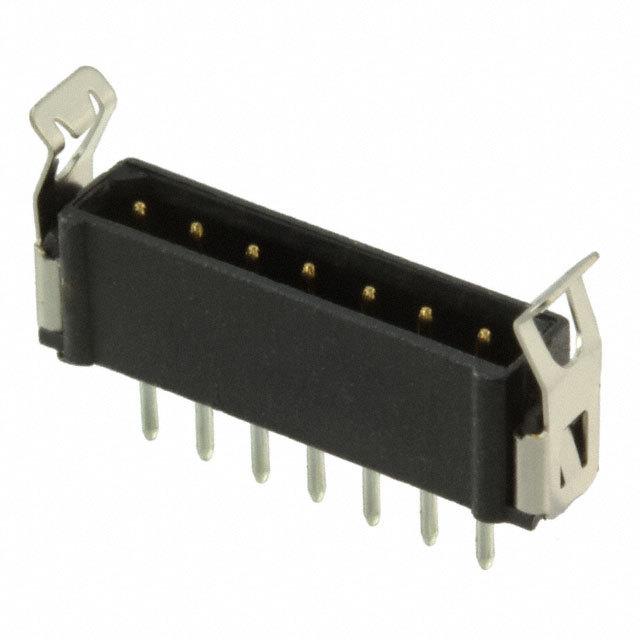

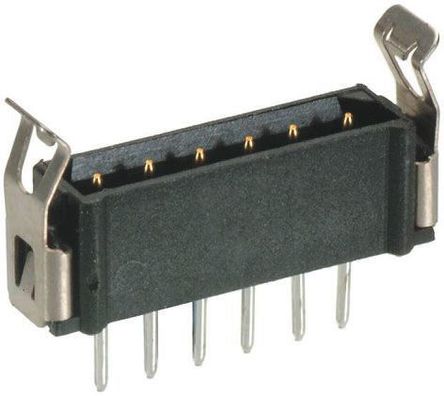

型号 M80-8770722 M80-8820742 8207

描述 HARWIN M80-8770722 Wire-To-Board Connector, 2mm, 7Contacts, Header, Datamate L-Tek M80 Series, Solder, 1RowsHARWIN  M80-8820742.  连接器, 公, 7路, 1排, 2MMBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Latch, Black Insulator, Receptacle, ROHS COMPLIANT

数据手册 ---

制造商 Harwin Harwin Harwin

分类 线对板连接器线对板连接器

安装方式 Through Hole Through Hole -

触点数 7 7 -

极性 Male Male -

触点电镀 Gold Gold -

额定电流 2.2A/触头 3 A -

排数 1 1 -

针脚数 7 7 -

额定电压 800 V 800 V -

额定电流(Max) - 3 A -

接触电阻(Max) - 25 mΩ -

颜色 Black Black -

触点材质 Phosphor Bronze Phosphor Bronze -

工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -

外壳颜色 - Black -

产品生命周期 Active Active Active

包装方式 Tube Tube -

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 Contains Lead Lead Free -

REACH SVHC版本 2015/12/17 2015/12/17 -
