对比图

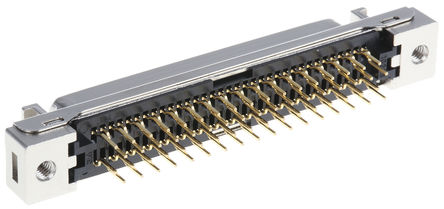

型号 10268-6212PC 60 01 068 5102 10268-6212VC
描述 3M 10268-6212PC 连接器, D型HARTING 60 01 068 5102 线至板连接器, 锁定式, har-mik系列, 68 触点, 插座, 1.27 mm, 通孔安装3M Mini D Ribbon (MDR) Connectors
数据手册 ---
制造商 3M Harting Technology Group (哈丁电子) 3M
分类 D-Sub连接器线对板连接器D-Sub连接器
安装方式 Through Hole Through Hole Through Hole
引脚间距 1.27 mm - 1.27 mm
触点数 68 68 -
极性 Female Female Female
触点电镀 Gold Flash over Nickel, Gold Gold, Gold over Nickel Gold
额定电流 1 A 1 A 1 A
绝缘电阻 500 MΩ - 500000000 Ω
排数 2 - 2
易燃性等级 UL 94 V-0 UL 94 V-0 UL 94 V-0
针脚数 68 - 68
额定电流(Max) 1 A - -
工作温度(Max) 85 ℃ 105 ℃ -
工作温度(Min) -20 ℃ -55 ℃ -
接触电阻 - 30 mΩ -
长度 63.8 mm - 2.512 in
宽度 11 mm - 9.10 mm
高度 11 mm - 11.0 mm
引脚间距 1.27 mm - 1.27 mm
外壳颜色 Black - Black
触点材质 Copper Alloy Copper Copper Alloy
工作温度 -20℃ ~ 85℃ - -
外壳材质 Plastic - Plastic
材质 - Thermoplastic -
产品生命周期 Active - Obsolete
RoHS标准 RoHS Compliant RoHS Compliant Non-Compliant
含铅标准 Lead Free Lead Free Contains Lead
军工级 Yes - -
REACH SVHC标准 - No SVHC -
REACH SVHC版本 - 2015/12/17 -
ECCN代码 EAR99 - -
