对比图
型号 HC49S-10-30-50-70-30-ATF LFXTAL003169 LFXTAL003164

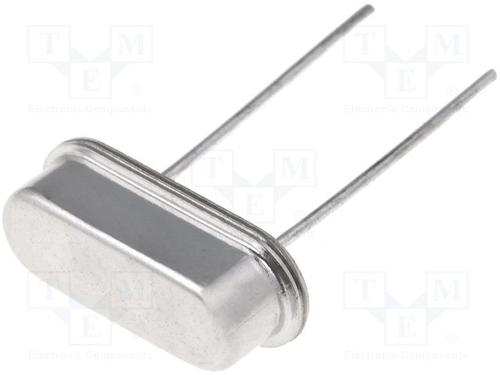

描述 MULTICOMP HC49S-10-30-50-70-30-ATF 晶振, HC-49/S, 10.0MHzIQD FREQUENCY PRODUCTS LFXTAL003169 晶振, 10MHZ, 30pF, HC49/USIQD FREQUENCY PRODUCTS LFXTAL003164 晶体, 10 MHz, 通孔, 11mm x 4.65mm, 50 ppm, 30 pF, 20 ppm, HC-49系列
数据手册 ---
制造商 Multicomp IQD Frequency Products IQD Frequency Products
分类 晶振晶振晶振
安装方式 Through Hole Through Hole Through Hole
引脚数 2 2 2
封装 通孔, 10.9mm x 4.65mm 通孔, 11mm x 4.7mm 通孔, 11mm x 4.65mm
频率 10 MHz 10 MHz 10 MHz
频率稳定度 ±50 ppm ±50 ppm ±50 ppm
频率容差 ±30 ppm ±30 ppm ±20 ppm
负载电容 30 pF 30 pF 30 pF
工作温度(Max) 70 ℃ 70 ℃ 60 ℃
工作温度(Min) -20 ℃ -20 ℃ -10 ℃
等效串联电阻(ESR) - 60.0 Ω -
封装 通孔, 10.9mm x 4.65mm 通孔, 11mm x 4.7mm 通孔, 11mm x 4.65mm
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
REACH SVHC标准 No SVHC No SVHC No SVHC
REACH SVHC版本 2015/12/17 2016/06/20 2016/06/20
工作温度 - -20℃ ~ 70℃ -10℃ ~ 60℃
