对比图
型号 C1812C106M3R2C7186 C1812C106M3R2CTU C1812C106M3R2CT500

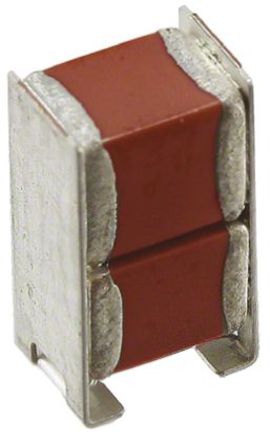

描述 KEMET C1812C106M3R2C7186 多层陶瓷电容器, 表面贴装, 1812 [4532 公制], 10 µF, 25 V, ± 20%, X7R, KPS Series 新表面贴装多层陶瓷片式电容器 Surface Mount Multilayer Ceramic Chip CapacitorsKemet KPS Stacked MLCC SeriesComercial grade single and 2-chip piled SMD multilayer ceramic capacitors Use of a lead frame to mechanically isolate the capacitor from the board provides high reliability Low ESR and ESL characteristics are ideal for high frequency switching power supplies Other applications include: smoothing circuits or DC to DC convertors Design allows for high levels of temperature cycling and board flex ### 2 芯堆积多层### 注电介质、电压及电容有序排列。
数据手册 ---
制造商 KEMET Corporation (基美) KEMET Corporation (基美) KEMET Corporation (基美)
分类 陶瓷电容电容陶瓷电容
安装方式 Surface Mount Surface Mount Surface Mount
引脚数 2 2 2
封装(公制) 4832 4832 4832
封装 1812 1812 1812
额定电压(DC) 25 V 25.0 V 25.0 V
电容 10 µF 10 μF 10 µF
容差 ±20 % ±20 % ±20 %
电介质特性 X7R X7R X7R
额定电压 25 V 25 V 25 V
工作温度(Max) 125 ℃ - 125 ℃
工作温度(Min) -55 ℃ - -55 ℃
长度 4.5 mm 4.5 mm 5 mm
宽度 3.2 mm 3.2 mm 3.2 mm
封装(公制) 4832 4832 4832
封装 1812 1812 1812
高度 - - 5 mm
介质材料 Ceramic Ceramic -
工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -
温度系数 - - ±15 %
产品生命周期 Active Active -
包装方式 Cut Tape (CT) - Cut Tape (CT)
RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant
含铅标准 -
REACH SVHC标准 - - No SVHC
REACH SVHC版本 2015/06/15 - 2015/06/15
