对比图
型号 FLUKE 9062 FLUKE 9062/UK CA6608

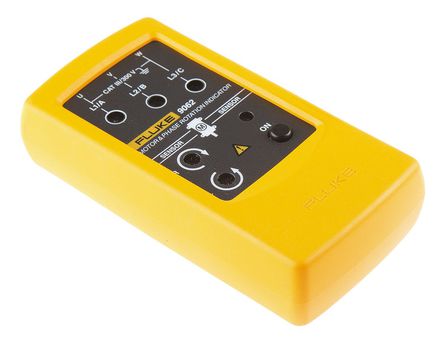

描述 Fluke 9062 motor rotation phase direction indicatorThe Fluke 9062 is a unique instrument that combines the performance of a motor phase rotation indicator with the advantages of contact-free detection. Designed especially for commercial and industrial environments, the Fluke 9062 provides rapid indication of three-phase rotation with the measurement cable assembly provided. It can also be used to determine the direction of rotation of three-phased synchronous/asynchronous motors. Contact-free detection is ideal for testing motors whose shaft assemblies are not visible. The test probes supplied have a variable clamping range for safe contact, notably with industrial sockets. Voltage range | Up to 440 V ---|--- Phase display | 120 to 440 V ac Frequency range | 2 to 400 Hz Operating timer | Continuous Dimensions | 124 x 61 x 27 mm Weight | 0.15 kg ### 标准 EN 61010, EN 61557-7, CAT III, 300 V### 相位旋转检测器FLUKE FLUKE 9062/UK 相位/马达转向测试仪CHAUVIN ARNOUX CA6608 Voltage Tester, 40V to 850V, LED
数据手册 ---
制造商 Fluke Fluke Chauvin Arnoux
分类
额定电压(AC) 440 V 440 V -
工作温度(Max) 40 ℃ 40 ℃ -
工作温度(Min) 0 ℃ 0 ℃ -
长度 61 mm - -
宽度 61 mm 61 mm -
高度 124 mm 124 mm -
重量 150 g - -
工作温度 - 0℃ ~ 40℃ -
RoHS标准 RoHS Compliant Non-Compliant Non-Compliant
含铅标准 Lead Free - -
REACH SVHC标准 No SVHC No SVHC -
REACH SVHC版本 2015/06/15 2015/06/15 -
