IPT1-105-01-L-D和IPT1-105-01-S-D

对比图

型号 IPT1-105-01-L-D IPT1-105-01-S-D IPT1-105-01-SM-D

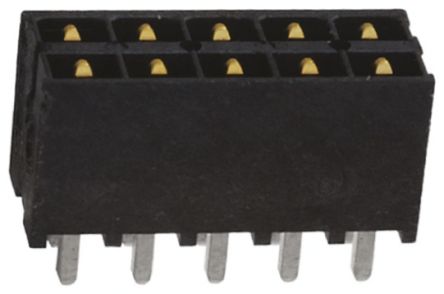

描述 Shrouded 2.54mm PCB Isolated Power Terminals - IPT1 SeriesIPT1 series Mini Mate® board to board shrouded PCB isolated power header terminals with a 2.54mm pitch and a height of 11.05mm when mated. These IPT1 series board to board PCB isolated power headers have a double row of Rugged™ individually shrouded 0.25μm gold plated phosphor bronze contacts set inside a black glass LCP insulator. The temperature range at which these IPT1 series board-to-board through hole power header terminals can be used is -55 to +125°C with a maximum power rating of 9A at an ambient temperature of 20°C. Part numbers IPT1-1XX-01-L-D are straight through hole mount Part numbers IPT1-1XX-01-L-D-RA are right angle through hole mount### 注These board to board shrouded PCB power header terminals mate with the IPS1 series shrouded PCB power sockets - see stock number 767-6840 typically.### Samtec 2.54mm Power Terminals and SocketsSAMTEC  IPT1-105-01-S-D  板至板连接, IPT1系列, 10 触点, 针座, 2.54 mm, 通孔安装, 2 排Conn Isolated Power Terminal Strip HDR 10POS 2.54mm Solder ST Thru-Hole 10 Terminal 1Port

数据手册 ---

制造商 Samtec (申泰电子) Samtec (申泰电子) Samtec (申泰电子)

分类 插针板对板连接器

安装方式 Through Hole Through Hole -

引脚间距 - 2.54 mm -

触点数 10 10 -

极性 Male Male -

触点电镀 Gold Gold -

额定电流 9 A 2.3A/触头 -

排数 2 2 -

针脚数 10 10 -

额定电流(Max) 5.9A/触头 5.9A/触头 -

工作温度(Max) 125 ℃ 125 ℃ -

工作温度(Min) -55 ℃ -55 ℃ -

额定电压 550VAC, 777VDC 775VAC, 1095VDC -

额定电压(AC) - 550 V -

高度 5.84 mm 6.35 mm -

长度 - 13.21 mm -

宽度 - 5.08 mm -

引脚间距 - 2.54 mm -

外壳颜色 Black Black -

触点材质 Phosphor Bronze Phosphor Bronze -

工作温度 -55℃ ~ 125℃ -55℃ ~ 125℃ -

颜色 - Black -

外壳材质 - Plastic -

产品生命周期 Active Active Active

包装方式 Bulk Bulk -

RoHS标准 RoHS Compliant RoHS Compliant RoHS Compliant

含铅标准 无铅 Lead Free -

REACH SVHC标准 No SVHC No SVHC -

REACH SVHC版本 2015/06/15 2015/06/15 -
