对比图
型号 211-15070 ALU7C-ALUCR-NABK-C1

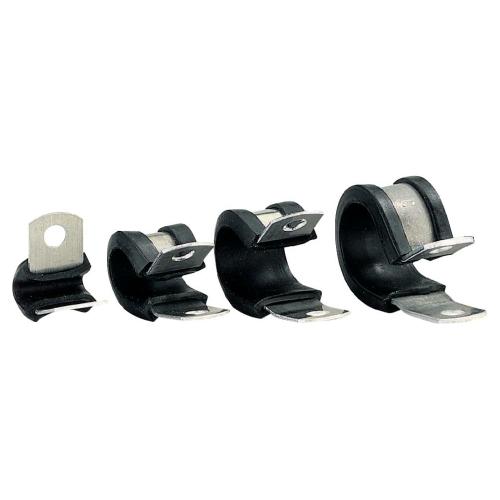

描述 Fixing brackets with protective profileAluminium brackets with protective profile are non-slip, absorb vibration and noise, eliminate notch effects and have good insulating properties. Particularly suitable for use in outdoor installations. Type | D | E | R | NOC ---|---|---|---|--- 4c | 3.2 | 11.6 | 1.6 | 0.8 5c | 4.8 | 12.6 | 1.6 | 0.8 6c | 6.4 | 13.4 | 1.6 | 0.8 7c | 8 | 14.2 | 1.6 | 0.8 8c | 9.5 | 15 | 1.6 | 0.8 9c | 11.1 | 15.8 | 1.6 | 0.8 10c | 12.7 | 16.6 | 1.6 | 0.8 11c | 14.3 | 19.1 | 2.8 | 1.3 12c | 15.9 | 19.9 | 2.8 | 1.3 13c | 17.5 | 20.7 | 2.8 | 1.3 14c | 19.1 | 21.5 | 2.8 | 1.3 15c | 20.6 | 22.3 | 2.8 | 1.3 16c | 22.2 | 23.1 | 2.8 | 1.3 Material: | ---|--- Clamp: | aluminium alloy Profile: | Chloroprene Colour: | metal, black Temperature range: | -20 °C → +80 °C ### 电缆和电线安装件HELLERMANNTYTON ALU7C-ALUCR-NABK-C1 电缆附件, P形夹, 铝制, 8.0MM, 10只
数据手册 --
制造商 Hellermann Tyton (海尔曼太通) Hellermann Tyton (海尔曼太通)
分类 线夹
宽度 16.3 mm 16.3 mm
内径尺寸 - 8 mm
材质 Aluminum -
颜色 - Black
RoHS标准 RoHS Compliant RoHS Compliant
军工级 Yes Yes
REACH SVHC标准 - No SVHC
