Crystal 24.576MHz 20ppm Tol 50ppm Stability 18pF FUND 40Ω 2Pin HC-49/US SMD T/R
24.576 MHz ±20ppm 晶体 18pF HC-49/US
得捷:
CRYSTAL 24.5760MHZ 18PF SMD
立创商城:
24.576MHz ±20ppm 18pF
艾睿:
Crystal 24.576MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
安富利:
Crystal 24.576MHz 18pF 2-Pin HC49/US T/R
Chip1Stop:
Crystal 24.576MHz 20ppm Tol 50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
TME:
Resonator: quartz; SMD; 24576kHz; 18pF
Verical:
Crystal 24.576MHz ±20ppm Tol ±50ppm Stability 18pF FUND 40Ohm 2-Pin HC-49/US SMD T/R
Newark:

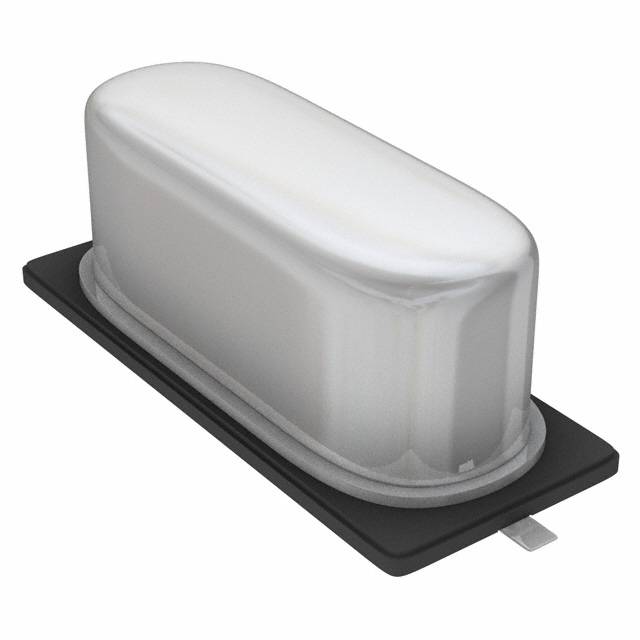

# ABRACON ABLS-24.576MHZ-B2F-T Crystal, Low Profile, 24.576 MHz, SMD, 11.5mm x 4.7mm, 50 ppm, 18 pF, 20 ppm, ABLS Series
频率 24.576 MHz
频率稳定度 ±50 ppm
频率容差 ±20 ppm
绝缘电阻 500 MΩ
电容 18 pF
等效串联电阻ESR 40 Ω
负载电容 18 pF
工作温度Max 70 ℃
工作温度Min -20 ℃
安装方式 Surface Mount
引脚数 2
封装 HC-49

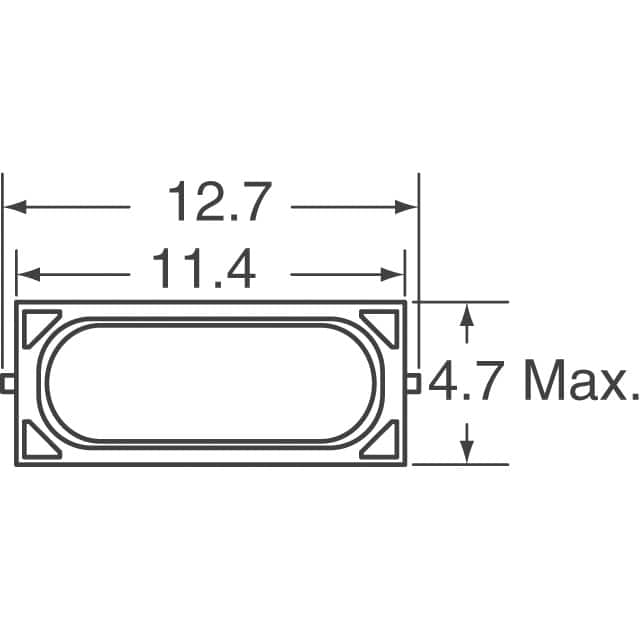

长度 11.4 mm
宽度 4.7 mm

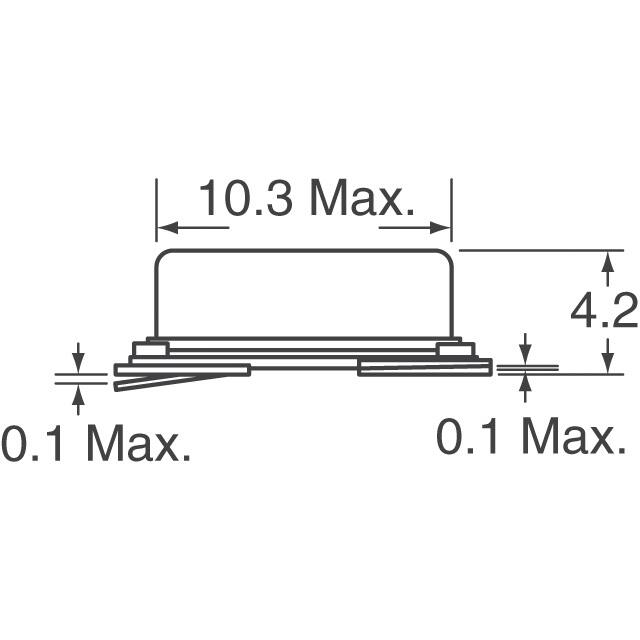

高度 4.20 mm
封装 HC-49
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 Contains SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ABLS-24.576MHZ-B2F-T Abracon | 当前型号 | 当前型号 |
ABLS-24.576MHZ-B4-F-T Abracon | 类似代替 | ABLS-24.576MHZ-B2F-T和ABLS-24.576MHZ-B4-F-T的区别 |
ABLS-18.432MHZ-T Abracon | 类似代替 | ABLS-24.576MHZ-B2F-T和ABLS-18.432MHZ-T的区别 |
