SHARC处理器 SHARC Processor
The real word uses analog, but convert it to digital for easy processing by using this digital signal processor from Analog Devices. This DSP processor has an operating temperature range of 0 °C to 70 °C. 266 MHz is its maximum speed. Its rom program memory is 512KB. This is a 32 bit processor. This device has a typical operating supply voltage of 1.2 V. Its minimum operating supply voltage of 1.14 V, while its maximum is 1.26 V.
频率 300 MHz
电源电压DC 3.30 V
RAM大小 384 KB
UART数量 1
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 1.26 V
电源电压Min 1.14 V
安装方式 Surface Mount
引脚数 100

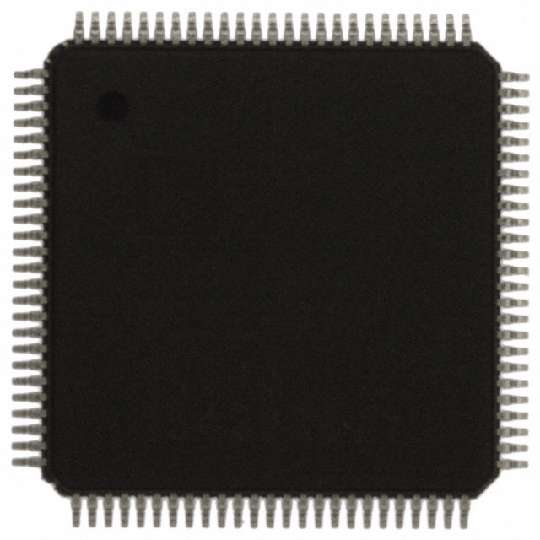

封装 LQFP-100
长度 14 mm
宽度 14 mm
高度 1.4 mm
封装 LQFP-100
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 3A991.a.2
