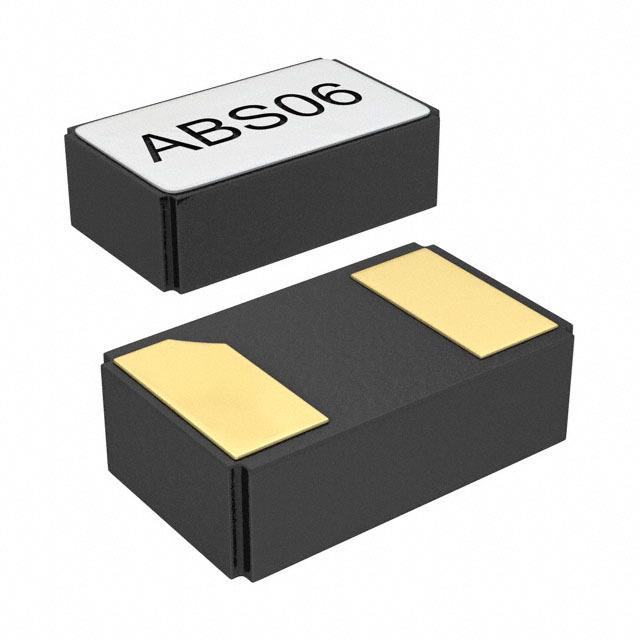

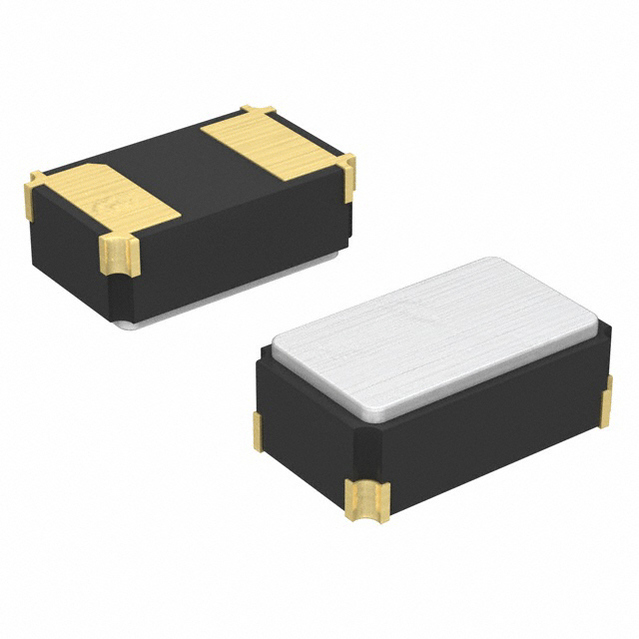

ABRACON ABS06-32.768KHZ-9-1-T 晶振, 32.768KHZ, 9PF, 2 X 1.2MM
±10ppm 晶体 9pF 2-SMD，无引线
欧时:
32.768kHz Crystal 2 Pad 9pF
得捷:
CRYSTAL 32.7680KHZ 9PF SMD
e络盟:
晶体, 32.768 kHz, SMD, 2mm x 1.2mm, 9 pF, 10 ppm, ABS06 Series
艾睿:
Crystal 0.032768MHz ±10ppm Tol 9pF Flexural 90000Ohm 2-Pin Mini-CSMD T/R
安富利:
Crystal 0.032768MHz 9pF 2-Pin CSMD T/R
Chip1Stop:
Crystal 0.032768MHz ±10ppm Tol 9pF 90000Ohm 2-Pin CSMD T/R
Newark:
# ABRACON ABS06-32.768KHZ-9-1-T Crystal, Low Profile, 32.768 kHz, SMD, 2mm x 1.2mm, 9 pF, 10 ppm, ABS06 Series
频率 32.768 kHz
频率容差 ±10 ppm
绝缘电阻 500 MΩ
等效串联电阻ESR 90 kΩ
负载电容 9 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2

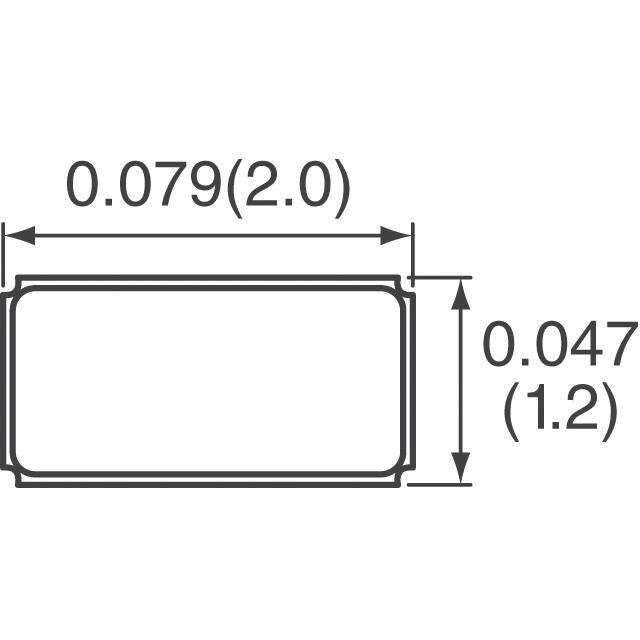

长度 2 mm
宽度 1.2 mm
封装 SMD-2
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 测试与测量, Industrial, Commercial, Communications & Networking, 商业, Wireless, 时钟与计时, 无线, 通信与网络, Clock & Timing, Test & Measurement
RoHS标准 RoHS Compliant
含铅标准 Lead Free
