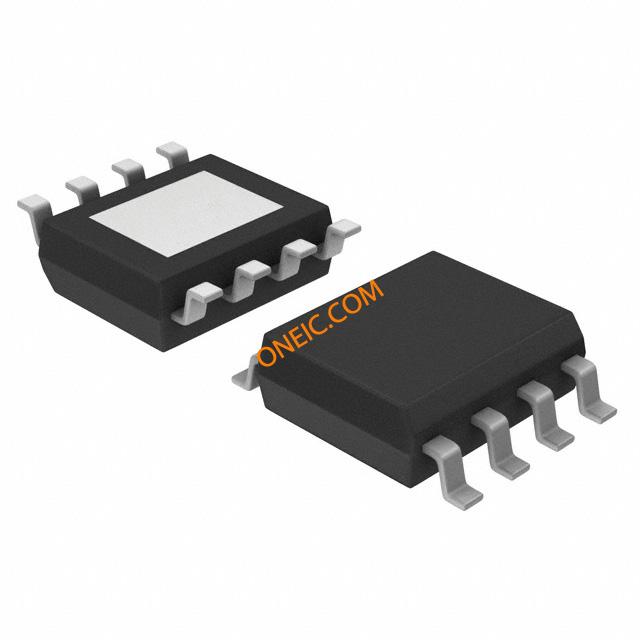

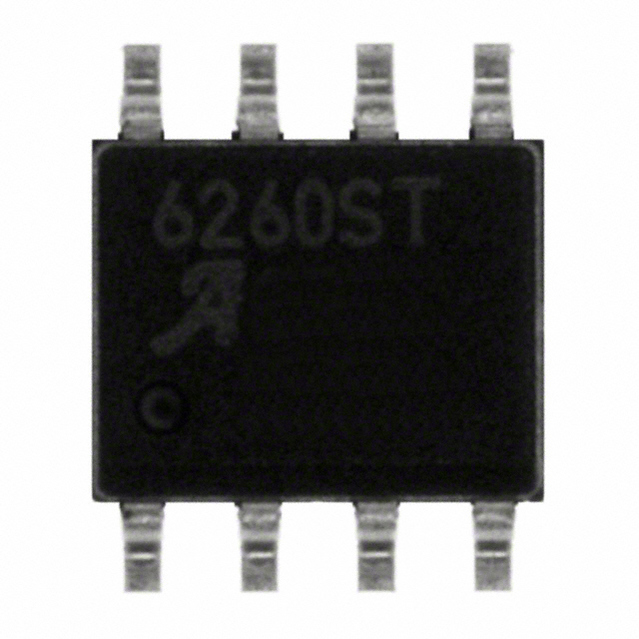

ALLEGRO MICROSYSTEMS A6260SLJTR-T 发光二极管驱动器, 1输出, 线性, 6V-40V输入, 3V/350mA输出, SOIC-8
The is a high-brightness LED Current Regulator with reverse battery protection and low drop-out voltage. The A6260 driver is a linear, programmable current regulator providing up to 350mA for driving high-brightness LEDs. Driving LEDs with constant current ensures safe operation with maximum possible light output. An enable input allows PWM dimming and can be used to enable low-current sleep mode. The rate of change of current during PWM switching is limited to reduce EMI. The integrated temperature monitor can be used to reduce the LED drive current if the chip temperature exceeds the thermal limit.
- .
- LED short-circuit and thermal protection
- .
- PWM dimming control input
- .
- 10µA Maximum shutdown current
- .
- Current slew rate limiting
输出接口数 1
输入电压DC 6.00V ~ 40.0V
输出电压 3 V
输出电流 367 mA
针脚数 8
输入电压Max 40 V
输入电压Min 6 V
工作温度Max 85 ℃
工作温度Min -20 ℃
电源电压 6V ~ 40V
电源电压Max 40 V
电源电压Min 6 V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
封装 SOIC-8
工作温度 -20℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 电机驱动与控制, Motor Drive & Control, 汽车级, Industrial, Motor Drive & Control, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
