AD9744AR

14位， 165 MSPS TxDAC系列D / A转换器 14-Bit, 165 MSPS TxDAC D/A Converter

Product Details

The AD9744 is the 14-bit member of the new third generation family in the _TxDAC_ product line. This new family includes the AD9744 14-bit, AD9742 12-bit, and AD9740 10-bit high-speed TxDAC converters with a maximum sampling rate of 210 MSPS. The family is pin-compatible with the previous two generations AD9764/AD9762/AD9760 and AD9754/AD9752/AD9750 with improved performance and lower power dissipation.

The _TxDAC_ product line is optimized for the transmit signal path of communications systems. All of the devices, including the first two generations, share the same interface options, small outline package and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD974x family has lower power dissipation than previous generations, making all three converters suitable for portable and low power applications.

_TxDAC_ is a registered trademark of Analog Devices.

### Features and Benefits

.

Pin-Compatible TxDAC Product Family

.

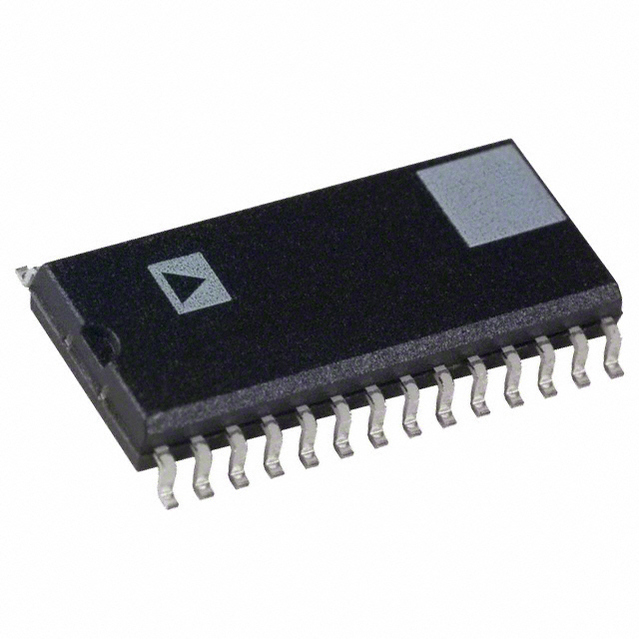

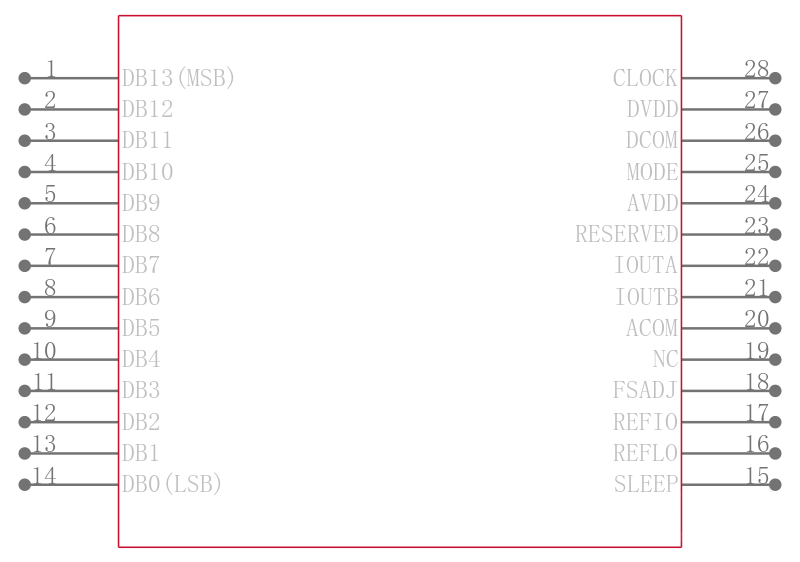

Industry Standard 28-lead SOIC and TSSOP Packages

.

SFDR to Nyquist at 20 MHz Output, 165 MSPS: 73 dBc

.

Twos Complement or Straight Binary Data Format

.

Power Dissipation: 135 mW at 3.3 V Power-Down Mode: 15 mW

.

On-Chip 1.20 V Reference
